LCM Series Linear slide cylinder

  • Space-saving
  • High reliability
  • High quality
  • A variety of hardware options

Inquiry

Features

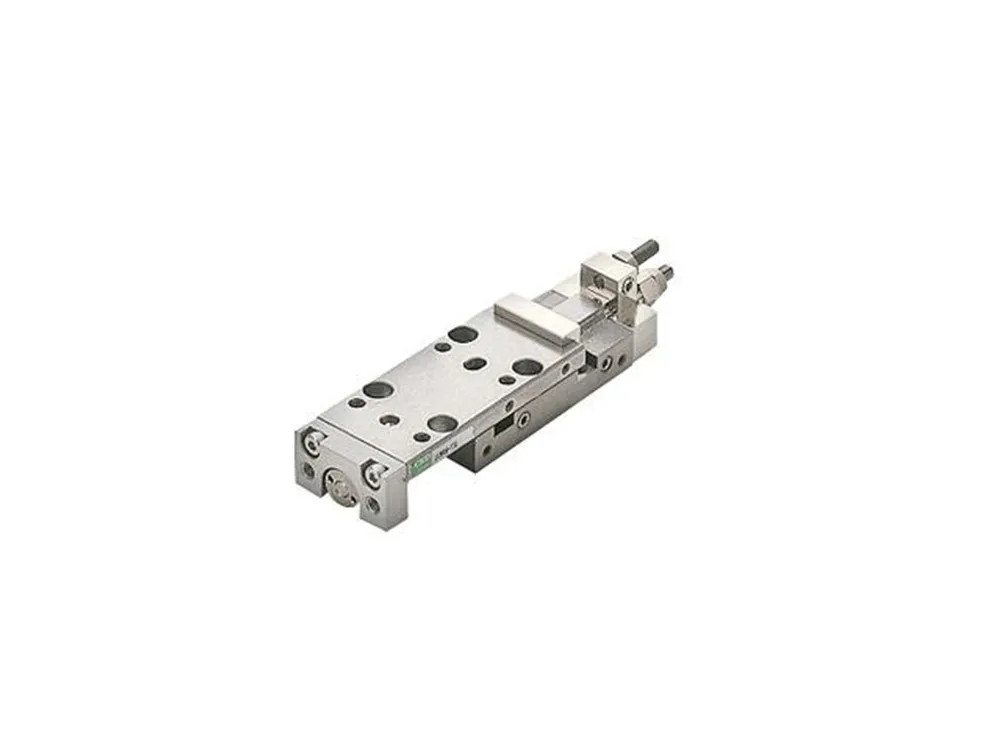

Ultra-compact, high-precision, rigid linear slide cylinder.



Ideal for high-precision positioning
High precision 0.005 mm parallelism during movement and 0.03 mm parallelism of installation.
Ideal for positioning.
Note: 0.006 mm in LCM-6, 8 with 30 mm stroke length.



Ultra-compact body
The cylinder body, linear guide and slide table are all integrated into an extremely small body.
The compact body can fit in a narrow, small space, allowing for more flexible layout.



Workpiece can be mounted on two sides
A workpiece can be directly mounted on the top and side with the preprocessed mounting holes.
The cylinder body and slide table are corrosion-resistant stainless steel.



Resistant to load
Uses linear guide with contact at four points.
Withstands load from all directions.

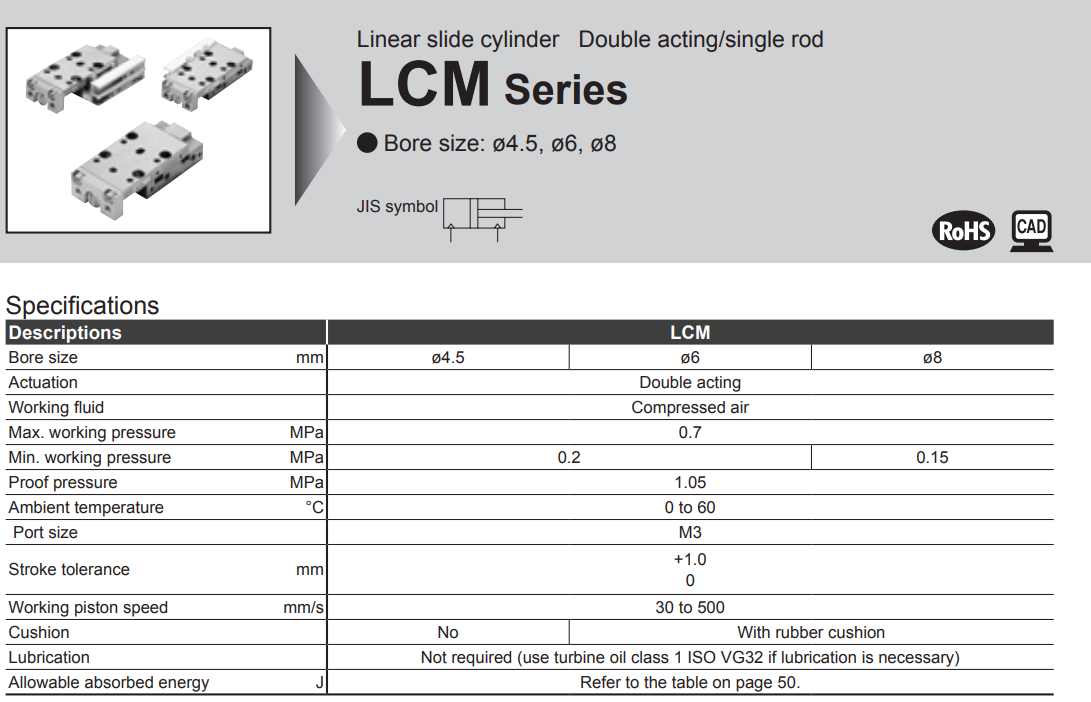

Specification

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

LCM Series Specifications・How to order・Dimensions(1MB)
