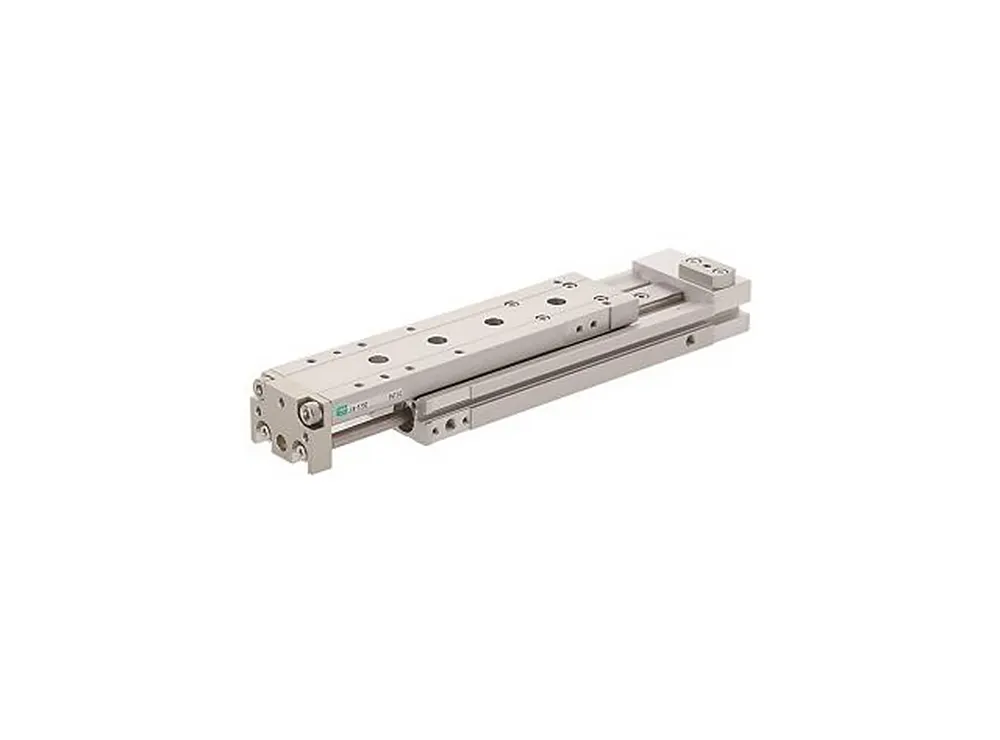

LCR Series Linear slide cylinder

  • Space-saving
  • High reliability
  • High quality
  • A variety of hardware options

Inquiry

Features

Symmetrical structure that is drastically lighter and with increased flexibility in design. Cylinder with highly rigid linear guide with a wide variety of options and variations.



Lightweight
The use of an aluminum table makes it about 30% lighter than the LCG Series.



Rigid
Highly rigid linear guide and slide table with improved rigidity compared to LCS Series.



Increased flexibility in design
Designing is more flexible with the laterally symmetrical stoppers, multi-side piping, two-side installation and positioning hole availability.



A wide variety of options and variations
Standard, position locking and clean-room specifications are available. Options include a stroke adjusting stopper, shock absorber stopper and more.
* Shock absorber stopper cannot be used with the clean-room specifications.



With buffer mechanism
If the driving section strikes against the workpiece when the cylinder is going forward, the buffer function is activated to protect the workpiece and cylinder when this type is used. Effective at the end of pick & place devices and other applications requiring a buffer function.
A cylinder switch mounted to detect the buffer activation (BL) enables detection of line abnormalities.

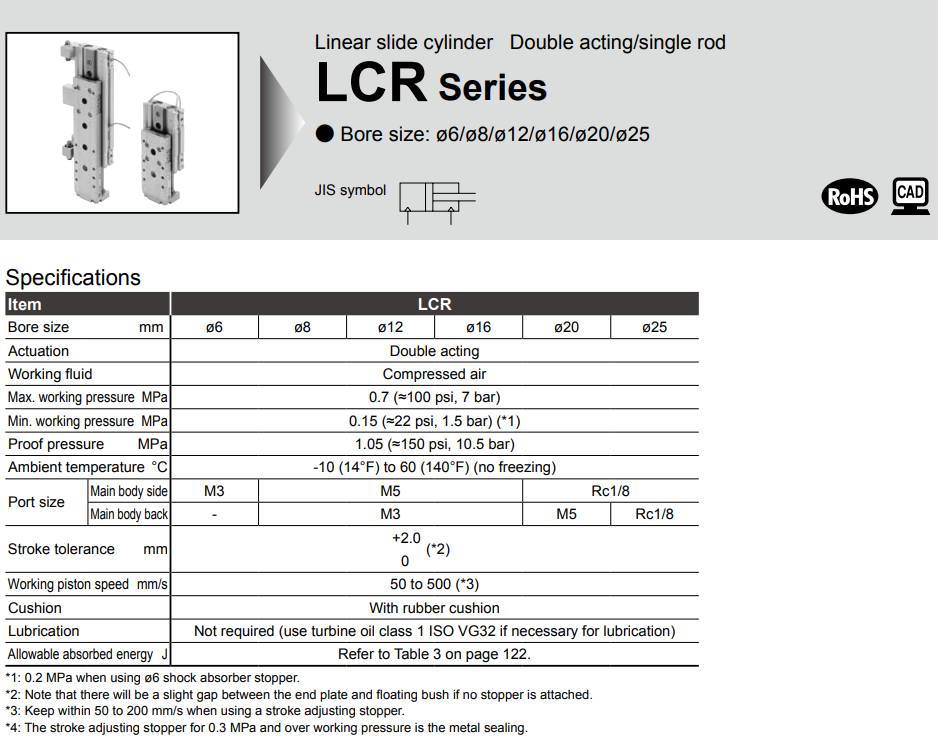

Specification

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

LCR Series Specifications・How to order・Dimensions(4MB)
