MEG 可配置電源

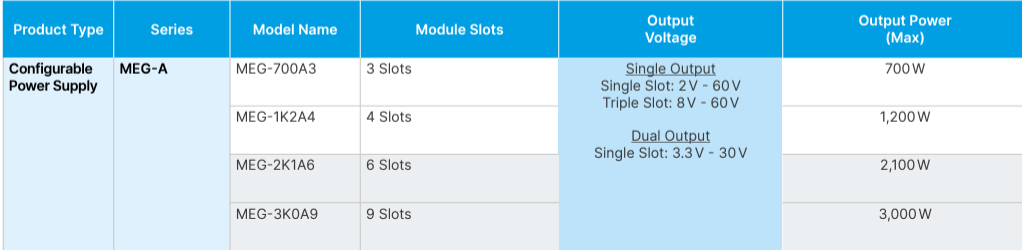

The Delta MEG-A configurable power supply series introduces the latest 3000W output model, the MEG-3K0A9. With a compact size of 7” x 10” x 1.59”, it achieves a power density of up to 27W/inch³. It can support up to 18 independent outputs, each configurable with voltages ranging from 2Vdc to 60Vdc. The single-slot, single-output module can provide up to 45A, while the three-slot, single-output module can deliver up to 100A.

This new model also features current sharing for outputs, a PC GUI for easy setup and monitoring, and smart fan speed control. Communication interface boards are available, converting PMBus to USB, RS232, or RS485, with three input connection options: European terminal block, American terminal block, and C22 socket.

The MEG-3K0A series is certified to IEC/EN/CSA 60601-1 (medical) and IEC/EN/UL/CSA 62368-1 (industrial) standards, as well as EN 55011 for industrial and medical (ISM) radio-frequency equipment, EN 55032 for industrial technical equipment (ITE), and other EMC certifications. It fully complies with RoHS environmental standards.
