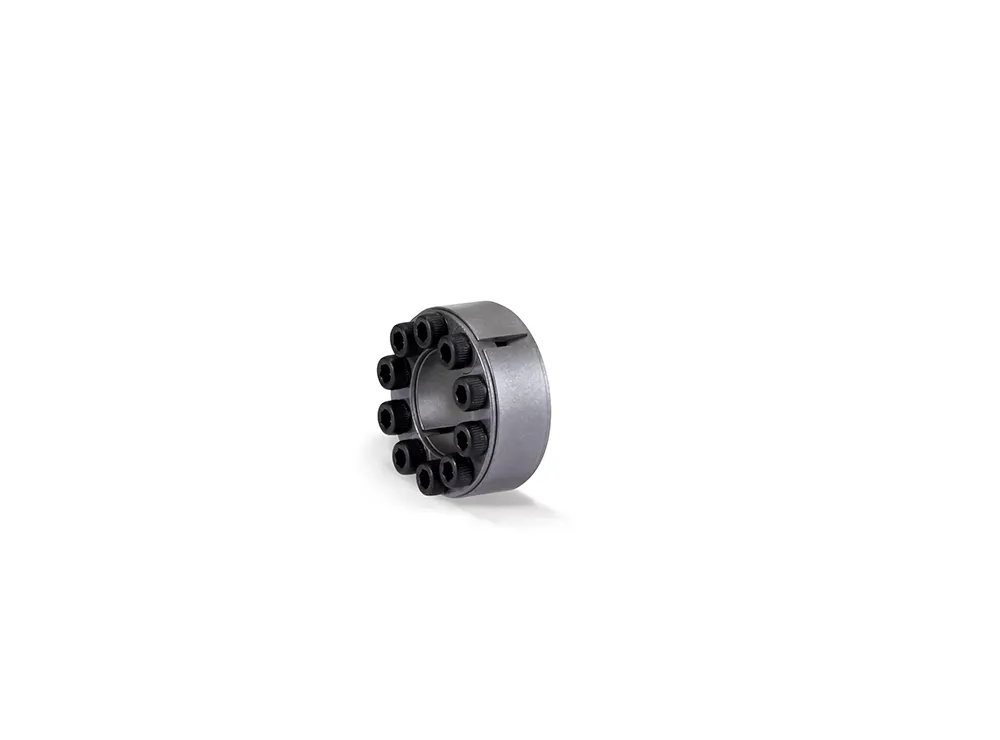

These are mechanical shaft locks that use tapers. The wedging action of the taper surface when the clamping bolt is locked thoroughly couples the shaft and hub. The POSI-LOCK line-up includes the PSL-K (which has a collar and a small inside-to-outside ratio useful in making smaller diameter components), the PSL-G (which is highly compatible with non-Miki products), and the PSL-D (which has a medium-weight design, low surface pressure, and enables smaller and lighter mounts). Each is available in a simple anti-rust specification that uses electroless nickel plating as well as a stainless steel specification.

Application

Machine tools/Pumps/Molding machines/Printing machines/Palletizing robots/Tools and jigs

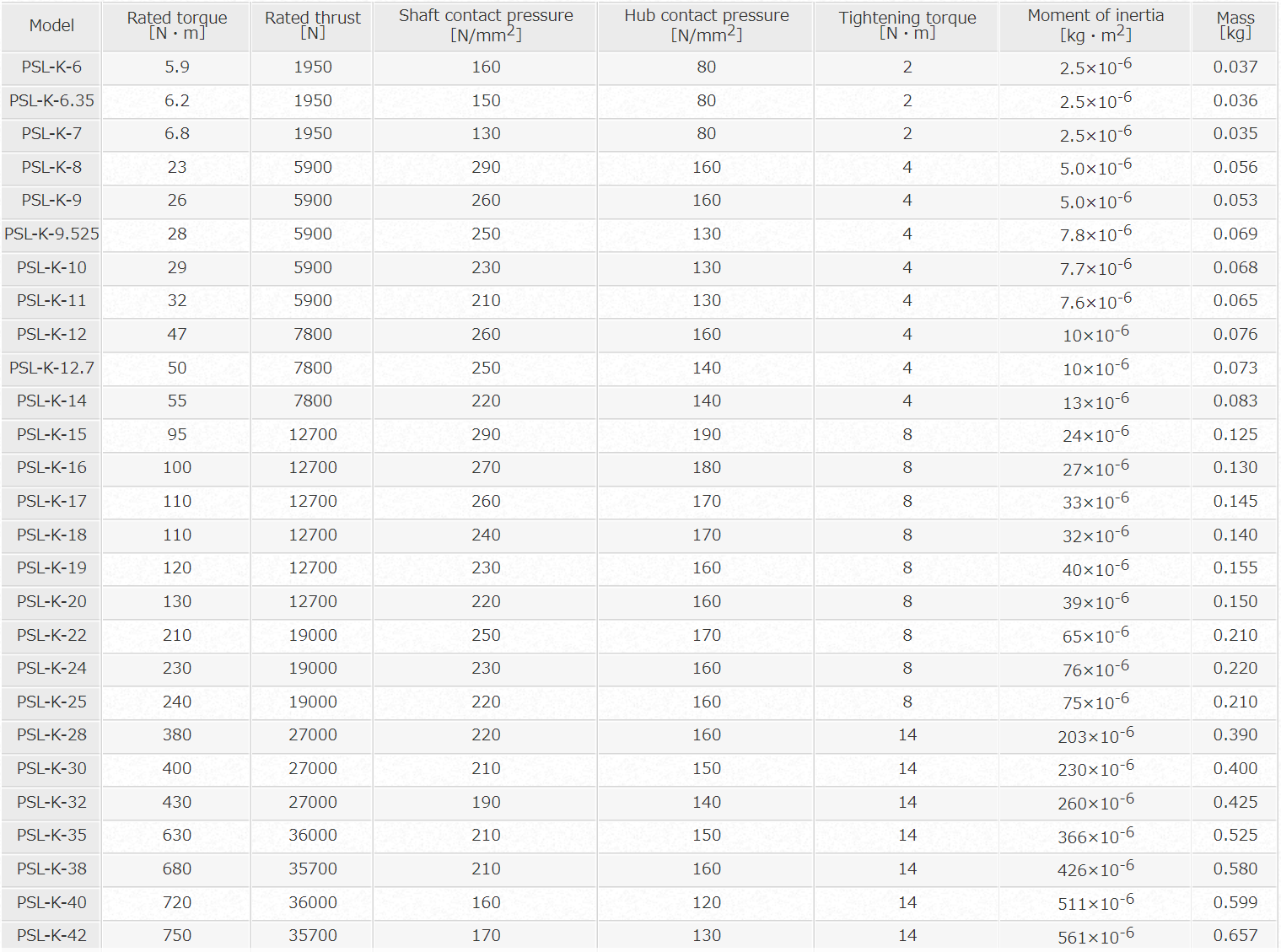

PSL-K Models

• Bore diameter : 6 mm to 42 mm

• Max. rated torque : 750 N･m

• Max. rated thrust  : 36000 N

Specifications

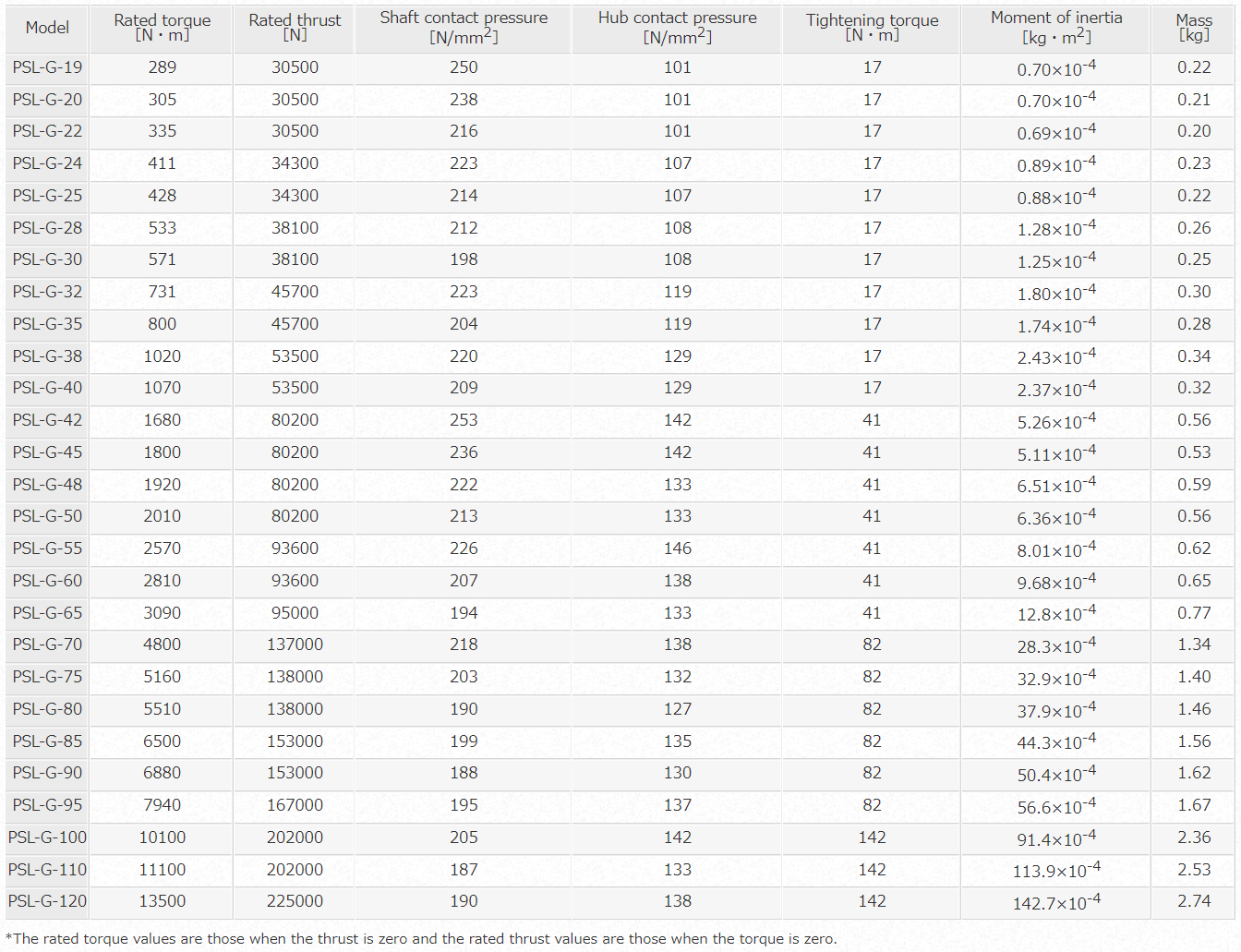

PSL-G Models

• Bore diameter : 19 mm to 120 mm
• Max. rated torque : 13500 N･m
• Max. rated thrust : 225000 N

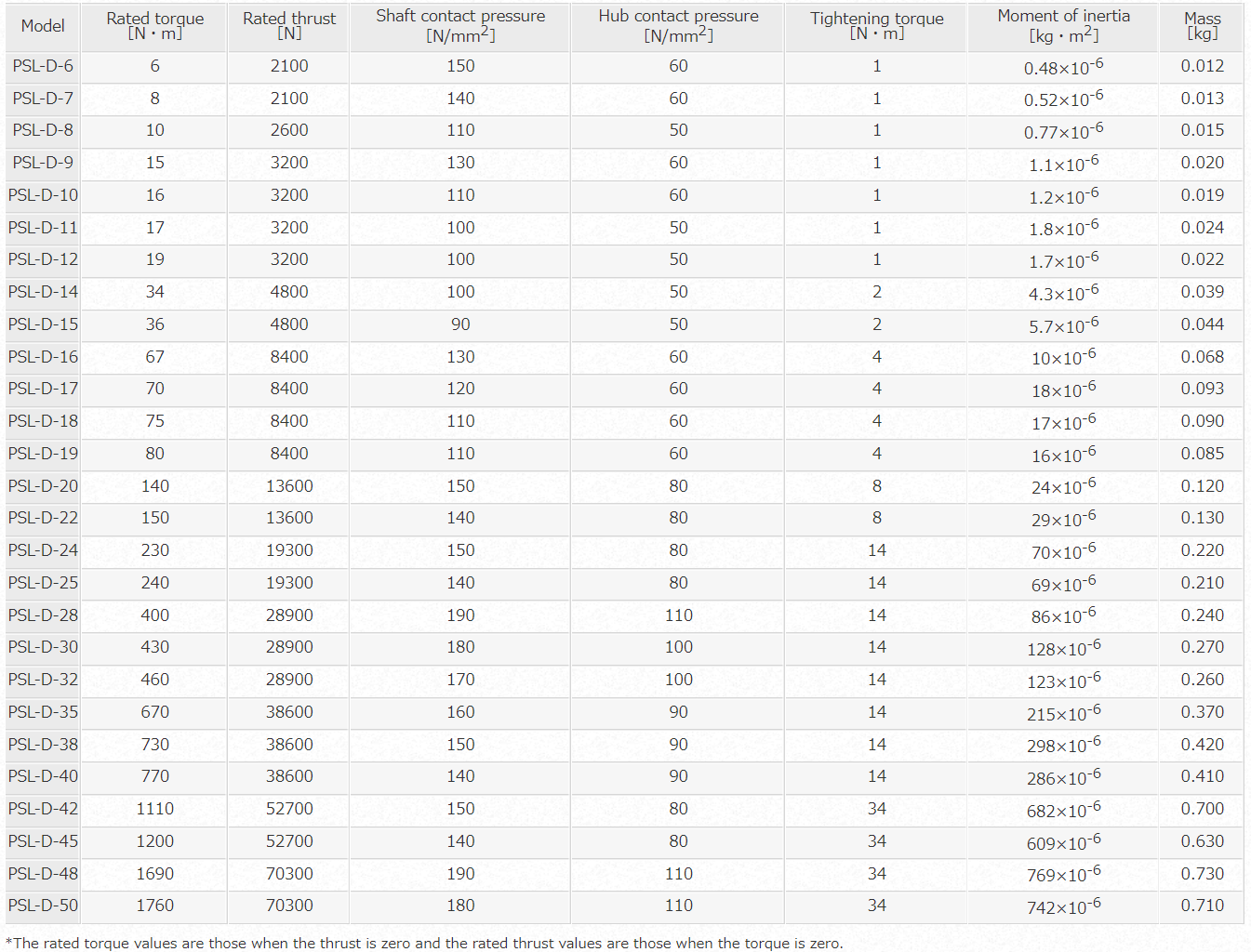

PSL-D Models

• Bore diameter : 6 mm to 50 mm
• Max. rated torque : 1760 N･m
• Max. rated thrust : 70300 N
