AirTAC

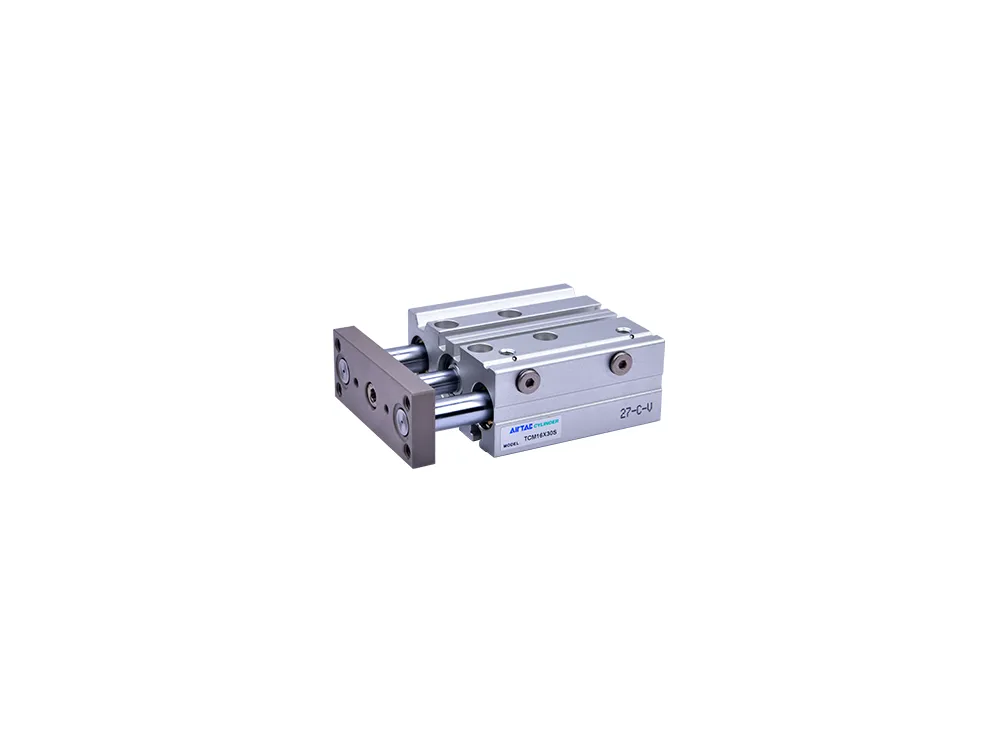

TCM Series Tri-rod cylinder

  • JIS standard
  • Magnetic switch sIots around the cylinder body
  • Brass sliding bearing
  • DoubIe-rod guide unit
  • Mounted from three directions

Inquiry

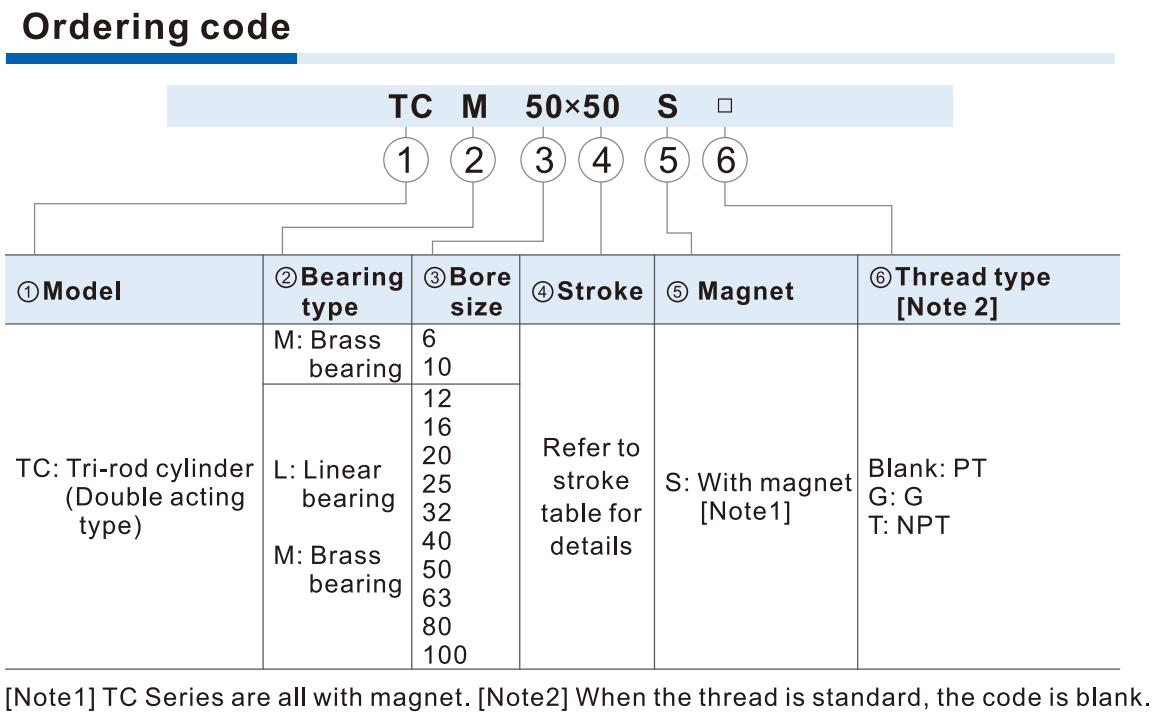

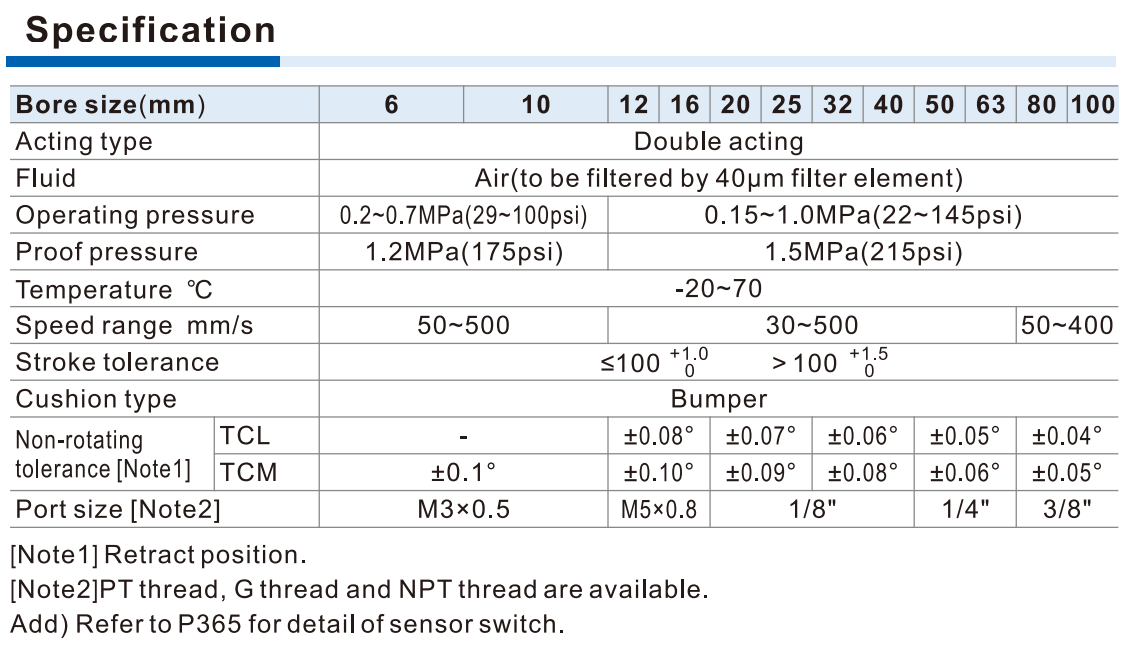

Features

  • JlS standard is implemented.
  • Two guides of special bearing steel and linear bearing or brass bearing guide are used to prevent rotating. They can bear high torque and radialload.

※ Note: SteeI ball linear bearing: lt is suitable for elevation action of cylinder or the situation requiring high precisionand high bearing ability, especially for the situation requiring low fraction action process. Brass sliding bearing: it is suitable for the action that has radial load resistance. Compared with normal cylinder of same use, the horizontal impact resistance is doubled and it has stronger torsion rigidity.

  • Drive unit and guide unit are in the same barrel that no additional accessories are needed with minimal space required. The air intake isoptional and it is convenient to install.
  • The bottom, back side and fixing plateofmain body respectively has two exact orientation orifices (See ΦPA orifice and the orifice in XX point), which can provide orientation installation with high precision for the special situation.
  • Options of switch mounting with provision 4 mounting slots.
  • Special design of main body provides multi-mount.

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

AirTAC_TCM_catalogue_EN

AirTAC_TCM_catalogue_CN
