HY/HK/HF Series High Precision Hypoid Gear Reducers

The compact and rigid design ensures maximum torque and a high reduction ratio while maintaining a lightweight and small footprint. The high-precision ground hypoid bevel gear set combined with an optimized planetary gear design achieves reduction ratios up to 1500:1. Multiple precision-machined surfaces allow for easy assembly and compatibility with any installation orientation. The input and output shafts are designed to meet diverse industrial application requirements.

The input connection utilizes a collet-style locking mechanism with dynamic balance analysis to ensure concentricity, balance, and zero-backlash power transmission at high input speeds.

HY Series Product Features

High Output Torque

The gear box is one piece constructed to ensure the high rigidity and corrosion-resistant capability.

Low Backlash

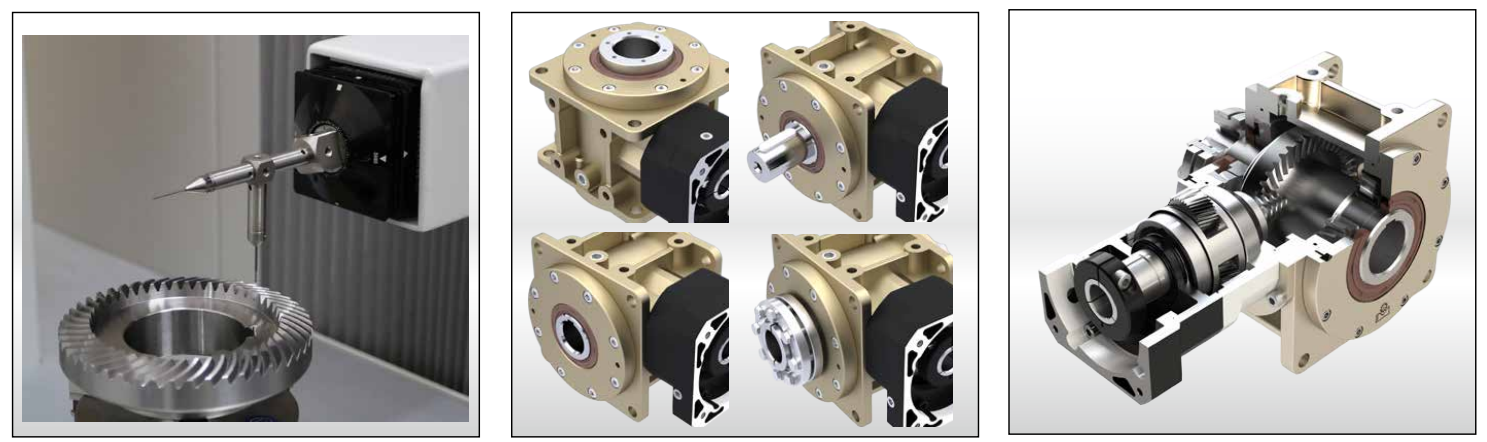

Using Gleason high precision CNC grinding machine to grinding the spiral bevel gears.
Torsional backlash depending on design up to <2 arcmin.

Low Backlash

Using Gleason high precision CNC grinding machine to grinding the spiral bevel gears.
Torsional backlash depending on design up to <2 arcmin

CAE Design and Analysis

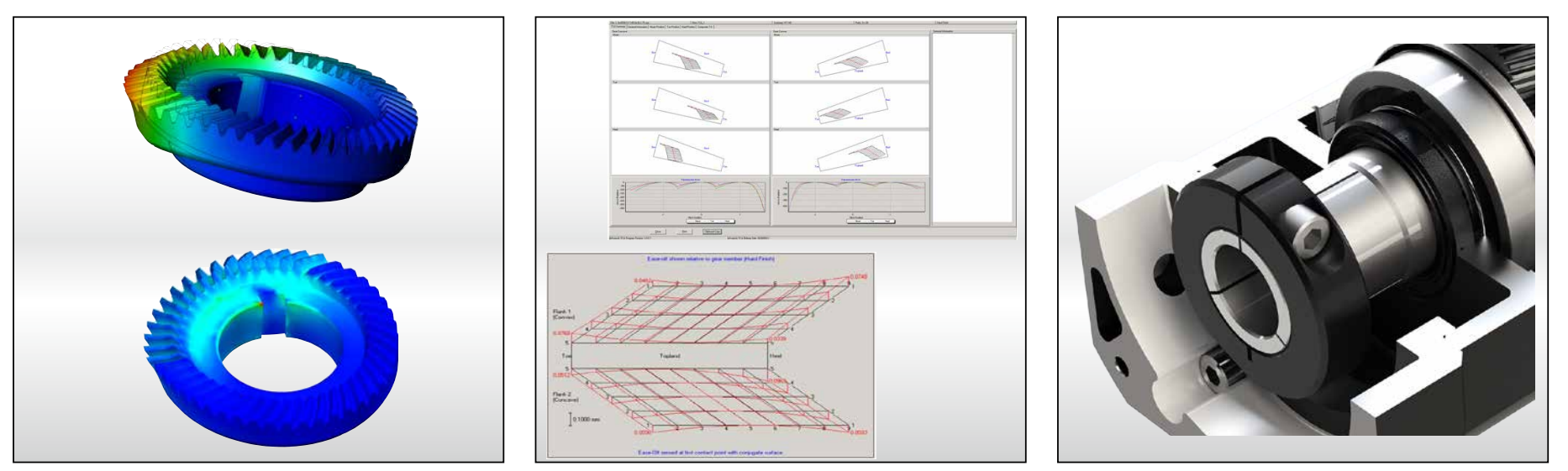

Employs 3D-CAE software for analysis and design, the software allows for analyzing the strength of the entire gear reducer and helical teeth. Increasing the service life of gears and the gear reducer.

Optimized Design

Use Gleason's design software to design new spiral bevel gears. Through the ideal gear contact pattern for application, achieve high permissible output torque.

Collet Locking Mechanism

The input-end and the motor are coupled through a collet locking meshanism. It has passed dynamical balance analysis to assure concentricity and balance on the connection and no backlash for power transmission while running at high speed.
