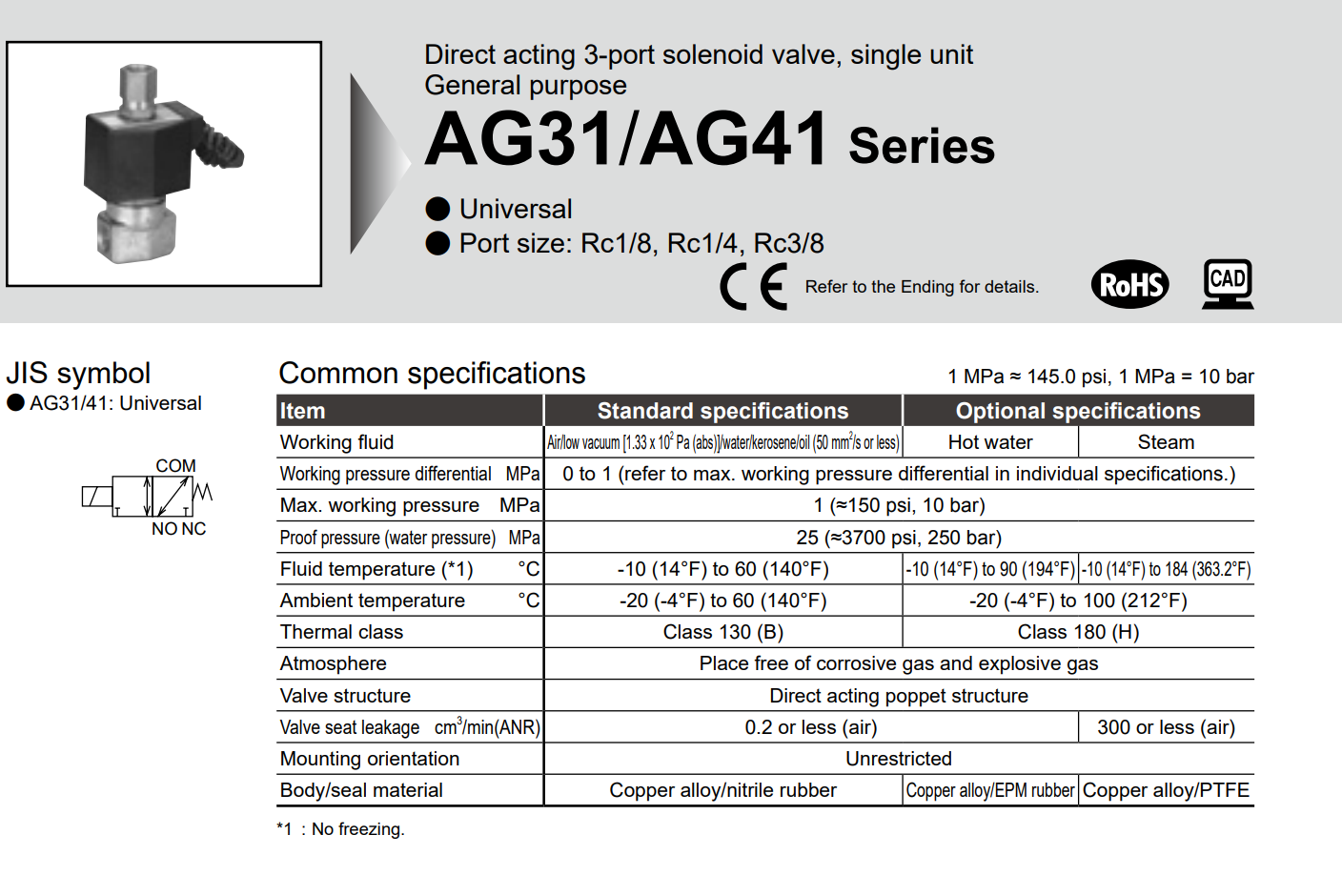

AG41 Series Direct acting 3-port solenoid valve

AG41 Series Direct acting 3-port solenoid valve

Direct acting solenoid valve compatible with various fluids.
Compatible with various applications through a wide variety of compatible materials, orifice sizes and coil options.

Supports multiple fluids
The body and sealant material can be selected to support various fluids.

Variation
Compatible with various applications through a wide variety of orifice size and coil option combinations.

Variation
2-port (NC, NO), 3-port, manifold: Select the ideal component according to the circuit in use.

Port size：1/4", 3/8", 1/2", 3/4", 1"

Catalogue

Datasheet

Manual

Brochure

Report

References

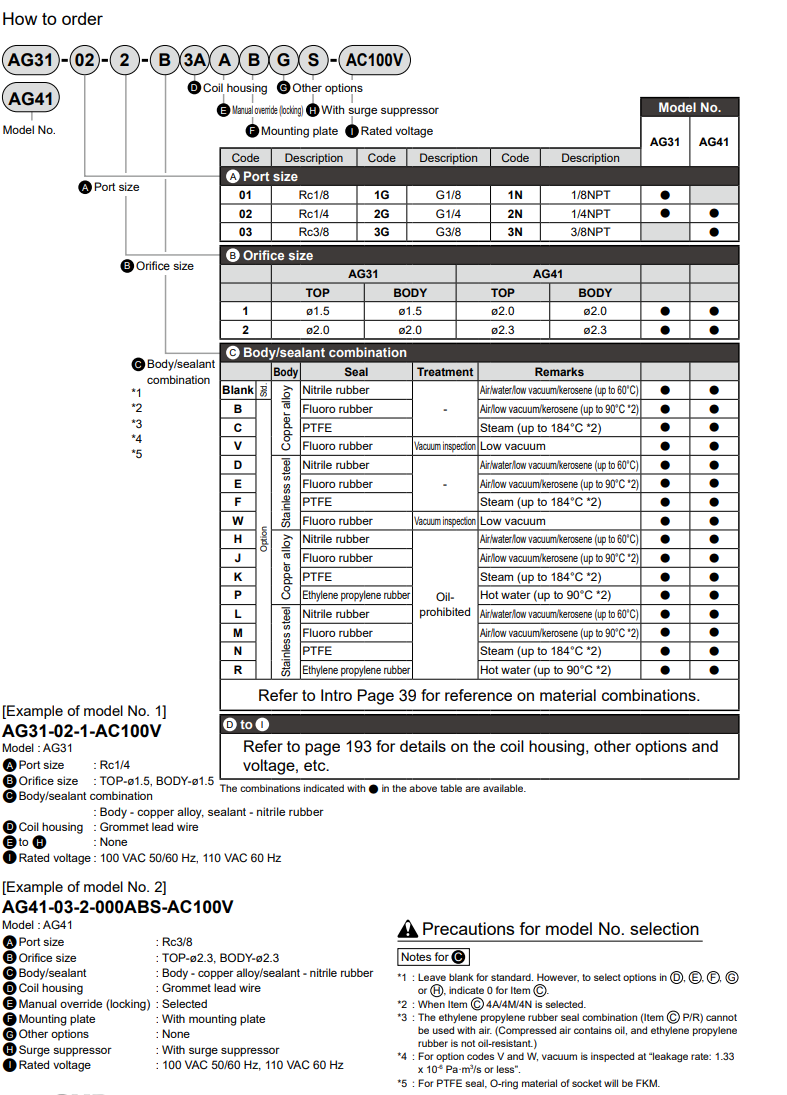

AB・GAB・AG・GAG Series Specifications・How to order・Dimensions(2MB)

AB・GAB・AG・GAG系列规格・型号表示方法・外形尺寸图(4MB)
