Delta

AH Series Motion CPU

  • Provides EtherCAT, DMCNET and pulse train solutions for customers.
  • Motion modules can independently take care of both the logic and motion control. Users can write and download the programs to the motion modules.
  • All motion modules support the standard motion control system.
  • Supports UD / PD / AB / 4AB input modes
  • Supports MPG inputs / E-Cam / G-code / 2 ~ 6 axes linear interpolation / 2 axes arc interpolation / 3 axes helical interpolation

Inquiry

AH Series Motion CPU



AH Motion is the advanced motion control series with dedicated motion control CPUs and shares the same modules with AH series PLCs. Through the motion control network, such as EtherCAT, AH Motion CPU can perform high-speed, high-precision machine control with the connected servo drives on the motion network.

Features & Benefits

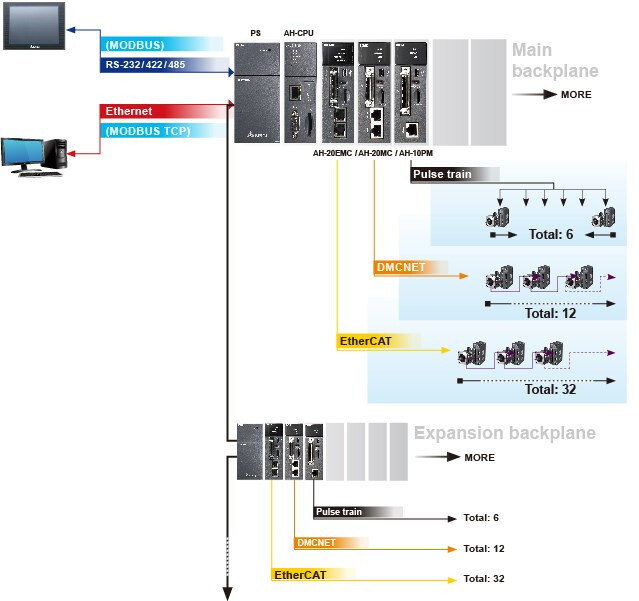

Standard Motion Control System

  • Provides EtherCAT, DMCNET and pulse train solutions for customers.

  • Motion modules can independently take care of both the logic and motion control. Users can write and download the programs to the motion modules.

  • All motion modules support the standard motion control system.

  • All motion modules can be installed on the local backplanes

  • Motion control functions:

Performance:

- Pulse train module: Max. 1 MHz output

- DMCNET module: Min. synchronization time at 12 axes is 1 ms

- EtherCAT module: Min. synchronization time at 8 / 16 / 32 axes is 0.5 / 1 / 2 ms

  • Supports UD / PD / AB / 4AB input modes

  • Supports MPG inputs / E-Cam / G-code / 2 ~ 6 axes linear interpolation / 2 axes arc interpolation / 3 axes helical interpolation

Note: The EtherCAT motion modules (AHxxEMC-5A) do not yet have support installed on the I/O slots.

Delta AH Series Motion CPU

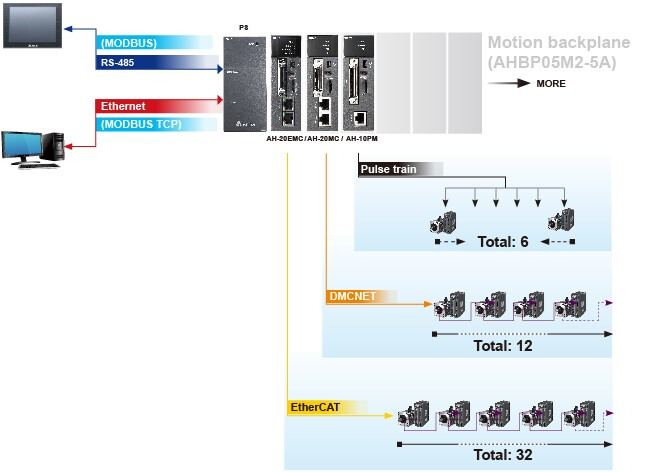

Compact Motion Control System

  • Provides EtherCAT, DMCNET and pulse train solutions for customers.
  • AHxxEMC-5A motion controller can be installed on the CPU slot of the specific motion backplane and
  • Compact motion control system does not support the expansion backplane.
  • Motion modules can be installed on the I/O slot of the motion backplane.
  • Motion control functions:

Performance:

- Pulse train module: Max. 1 MHz output

- DMCNET module: Min. synchronization time at 12 axes is 1 ms

- EtherCAT module: Min. synchronization time at 8 / 16 / 32 axes is 0.5 / 1 / 2 ms

  • Supports UD / PD / AB / 4AB input modes

  • Supports MPG inputs / E-Cam / G-code / 2 ~ 6 axes linear interpolation / 2 axes arc interpolation / 3 axes helical interpolation

Note: The EtherCAT motion modules (AHxxEMC-5A) do not yet have support installed on the I/O slots.

AH Series Motion CPU

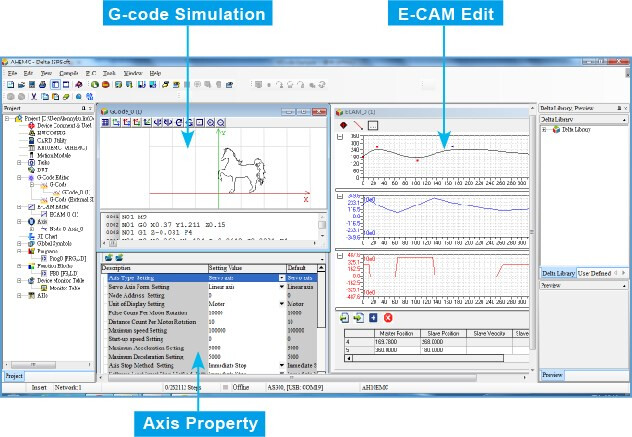

Integrated Motion Programming

AH Series Motion CPU

ISPSoft V3 integrates the logic and motion program editors into one software. Customers can use standard PLCopen® function blocks, as well as Delta’s self-developed function blocks to easily achieve different control requirements. (from ISPSoft introduction page)

AH Series Motion CPU

Applications

Packaging machines, printing machines, Electronics/Assembly Equipment



Specifications

EtherCAT communication motion control (100 Mbps)

Min. synchronization time at 8/16/32 axes is 0.5/1/2 ms

Supports 2 ~ 6-axis linear interpolation, 2-axis arc interpolation and 3-axis helical interpolation

Built in Ethernet communication port

Supports Micro SD card

Supports EtherNet/IP

- Adapter mode

- Supports I/O connection & explicit message

- Connections: TCP = 16 ; CIP = 32

- RPI: 2 ~ 1,000 ms

- PPS: 3,200

- 250 words / connection

CPU execution speed: LD instruction @ 0.08 μs

Program capacity: 256 k steps

Data register: D=64 k words / L=64 k words

Supports UD / PD / AB / 4 AB input modes

Built-in Mini USB programming communication port

Supports G-code

Supports hot-swapping function

Diagnose function

Module status LED indicator

Supports installation on CPU slot of motion backplane and working as CPU (Note)

Max. quantity of FB instance is 4096

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

Delta_IABG_Catalogue_TC_2023

DELTA_IABG_Catalogue_EN
