Delta

Delta AH Series Standard CPU

  • Modularized Hardware Structure, Highly Integrated Software
  • Highly integrated software ISPSoft: Graphical Interface with 5 programming languages
  • Enhanced flexibility: Max. 100m between 2 local extension racks
  • Improved maintainability: Hot-swapping function keeps the system running

Inquiry

Hot Swappable Mid-range PLC - AH Series



AH Series PLC provides automation solutions for high-level applications. The combination of modularized hardware structure, advanced functions, and the highly integrated software provides a system solution for process control applications. In addition to various function blocks (FB), excellent price/performance, and an abundant selection of extension modules, AH Series PLC also provides multi-axis motion control via motion network, such as EtherCAT, to perform high-speed, high-precision machine control. The exceptional system expandability also greatly reduces the system cost for a broad range of applications.

Applications

Large Scale Industrial Machines

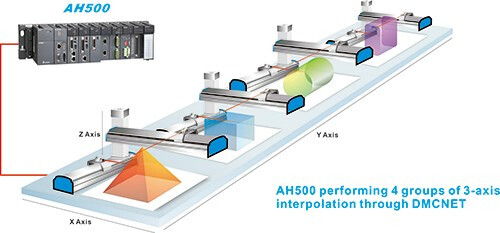

The AH500 supports excellent motion control functions including 3-axis linear interpolation, 2-axis arc interpolation, and 3-axis helical interpolation. In addition, the AH500 is capable of controlling up to 12 axes or 4 groups of 3-axis interpolation synchronously at 1ms through Delta's high speed DMCNET motion control network. The AH500 satisfies requirements for complex processing or precise motion control and is effective for applications such as building material processors, warp knitting machines and food packaging machines.

Delta台達 AH系列標準型CPU

The AH series standard CPU has many models, please refer to the catalog for detailed specifications.

System Applications

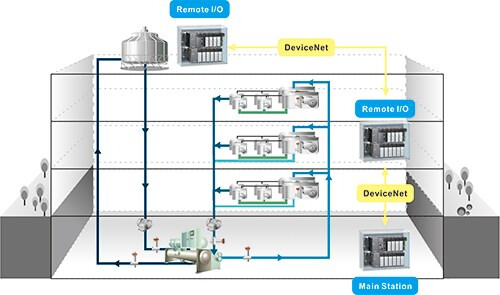

The AH500 is a modular system controller designed for almost all types of high-level automation tasks. Its abundant selection of I/O modules and the flexible system structure provide the best solutions for all kinds of system integration requirements. Through remote I/O expandability, you can build up the AH500 main station as a central control system and allocate the remote I/O systems on different floors for HVAC applications, or in different processing stations for the paper-making industry. The AH500 not only fulfills the application requirements for industrial machines or devices, but it also provides total solutions for automation systems.

Delta台達 AH系列標準型CPU

Specifications

Utilizes 32-bit processor

Excellent program execution speed:LD instruction execution speed 0.02µs

Max. I/O points:
  - DIO: Max. 4,352 points
  - AIO: Max. 544 channels
  - RIO>100,000 points

Program capacity:Max 384k steps (1.5MB)

Data register (D+L) 256k words

CPU built-in with fully isolated RS-232/422/485、Mini USB、Ethernet、full-size standard SD(standard CPU)/SDHC(advanced CPU) card slot

Abundant selection of DIO modules, AIO modules, temperature control modules, network modules, pulse-train modules and DMCNET / EtherCAT motion control modules

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

Delta_IA-PLC_AH500_Manual_CN

Delta_IA-PLC_AH Motion Controller_Manual_CN

DELTA_IA-PLC_AH Motion Controller_Manual_EN

Delta_IABG_Catalogue_TC_2023

DELTA_IABG_Catalogue_EN
