Delta

Delta AX-3 AX-5 CODESYS Control System

  • Provides multiple controller solutions:EtherCAT motion controllers,logical controllers
  • Supports AS power, DIO, AIO and temperature expansion modules (max. 32 modules)
  • High performance, min. command execution time: 2 ns
  • Provides various motion commands: position, velocity, torque, multi-axis interpolation, E-gear, E-CAM, and more
  • Built-in 6 ~ 16 DI & 6 ~ 8 DO, incremental encoders, SSI absolute encoder, RS-232 / 422 / 485, Ethernet and EtherCAT interfaces

Inquiry

The AX-3 Series Motion CPU



The AX-3 Series Motion CPU adapts the CODESYS platform and supports both motion and logic control applications. It has multiple communication ports and an EtherCAT motion control interface onboard. It also offers motion control function blocks complying with international standards and supports 8 ~ 32 motion axes and 4 ~ 64 point-to-point axes control, widely applied in automation machines in the woodworking, packaging, printing, labeling, textile, and pharmaceutical industries.

Features & Benefits

AX-3 CODESYS Control System


Provides multiple controller solutions
EtherCAT motion controllers
- AX-308E / AX-316E / AX-332E CPU supports up to 8 / 16 / 32 EtherCAT axes (AX-332E min. sync time: 1 ms / 32 axes)
- AX-304EL / AX-364EL CPUs support up to 4 / 64 EtherCAT axes (Point-to-Point mode)
Logical controllers
- AX-300N / AX-324N CPUs built-in 0 / 24 DIO points
Supports AS power, DIO, AIO and temperature expansion modules (max. 32 modules)
High performance, min. command execution time: 2 ns
Provides various motion commands: position, velocity, torque, multi-axis interpolation, E-gear, E-CAM, and more
Built-in 6 ~ 16 DI & 6 ~ 8 DO, incremental encoders, SSI absolute encoder, RS-232 / 422 / 485, Ethernet and EtherCAT interfaces

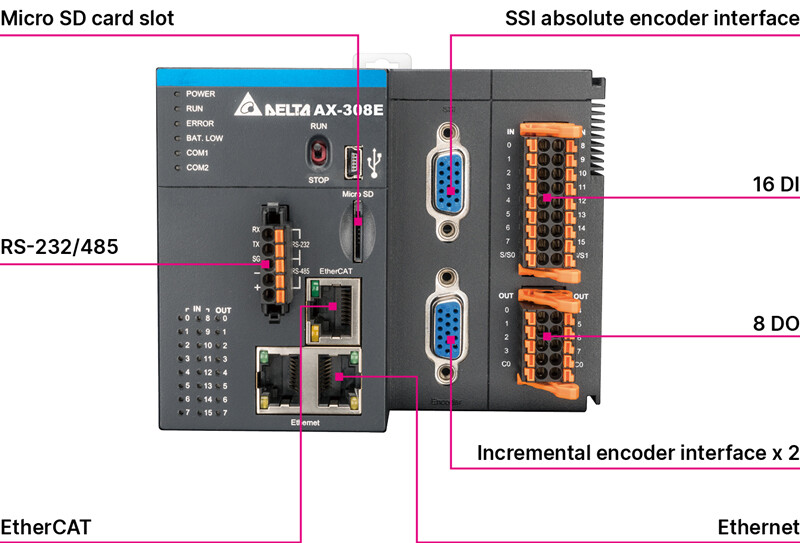

Highly integrated CPU design
The AX-3 motion control CPUs feature various built-in I/O and communication protocols to satisfy customer needs for compact design and high performance


AX-3 series has many models, please refer to the catalog for detailed specifications.

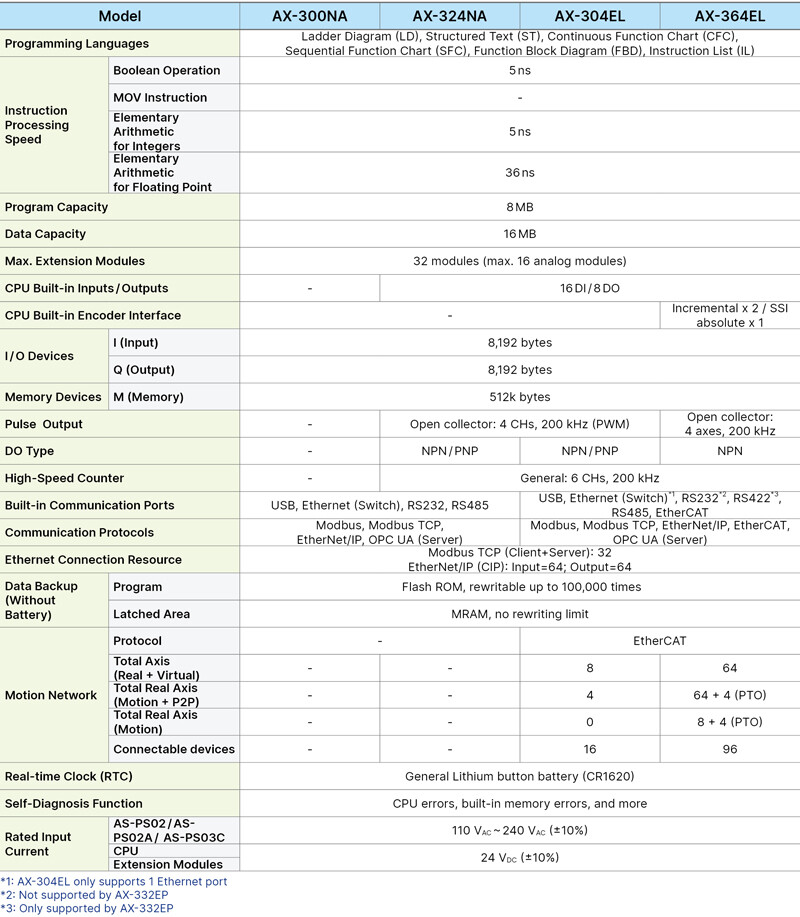

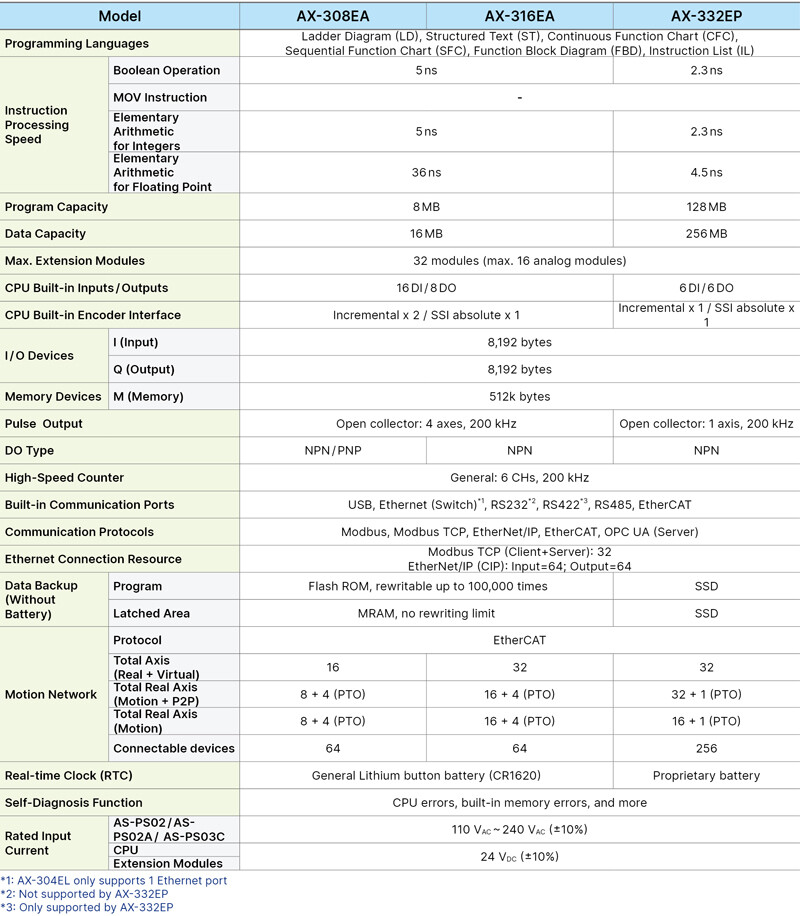

技術規格

AX-3

Note: Actual support functions will vary by series

AX-3
AX-3

Dimensions

AX-3 Series CPUs

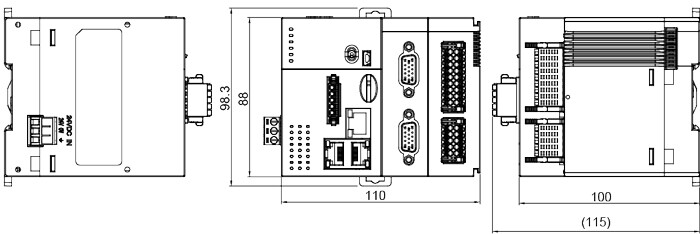

AX-308EA  / AX-316EA  / AX-364EL (Unit: mm)

AX-3

Applications

Woodworking, packaging, printing, textile, and pharmaceutical machines

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

DELTA_AX-3_Manual_EN

Delta_IABG_Catalogue_TC_2023

DELTA_IABG_Catalogue_EN
