DPM-D Series Power Meter

  • Directly measures current up to 63A. Active energy accuracy up to 0.5%
  • Supports the Modbus RTU protocol. Easy to apply with SCADA systems and the Energy Management System (EMS)
  • Capable of measuring total harmonic distortion (THD) and individual harmonics up to the 31st order
  • Data log and Max. / Min. records

Inquiry

DPM-D Series Power Meter Overview

The Digital Power Meter offers all the measurement capabilities required to monitor current, voltage, power range and four-quadrant metering in an electrical installation. Its main function is to measure various electrical energy values and power quality parameters, including power factory, harmonics, and current/voltage unbalance. Delta’s Power Meter can also identify equipment malfunctions, energy waste, and other power quality issues for purposes such as analyzing electricity consumption and managing energy usage.

Features include highly precise measurement of bidirectional electrical energy and power parameters. It also provides simple installation and easy operation and a built-in RS-485 communication port that supports Modbus RTU/ASCII. All models comply with international installation dimensions and CE international safety approvals.



Applications

Suitable for : energy management, medium or low voltage distribution systems, smart switch cabinets, energy management systems, factory automation systems, building automation systems, railway energy management systems, electric heating systems, wind power systems, energy storage systems, electric grid measurement, and energy quality analysis

    Features & Benefits

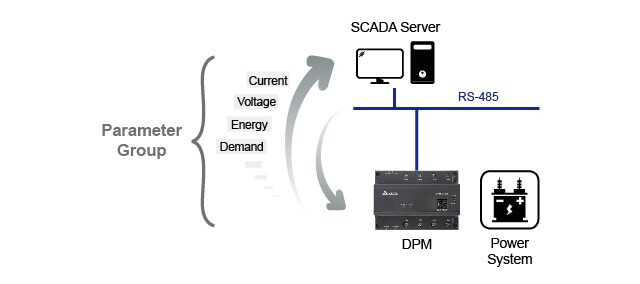

    Parameter Grouping Function

    • All electricity data can be combined as a parameter group that allows access for master controllers (including PLCs, SCADA and EMS). This function reduces reading time as well as enhances real-time data accessibility of the master controllers
    • Combines several discontinuous register addresses to one continuous address, reducing commands to achieve high-efficiency data acquisition of the master controllers (SCADA and PLC)

    DPM-D520I

    Delta's Din-rail Multifunction Power Meter (CT included) DPM-D520I adopts a power load capacity of up to 63A, and is applicable to equipment as well as sectors where installation space is limited.



    • Directly measures current up to 63A. Active energy accuracy up to 0.5%

    • Supports Modbus RTU protocol. Easy to apply with SCADA and EMS

    • Capable of measuring total harmonic distortion (THD) and individual harmonics up to the 31st order

    • Data log and Max. / Min. records

    DPM-D532I / D533I

    Delta’s DIN Rail Mount Type Power Meter DPM-D532I / D533I are capable of directly measuring current up to 63A and applicable to industrial equipment as well as sites where installation space is limited.



    • Directly measures current up to 63A. Active energy accuracy up to 0.5%

    • Supports the Modbus RTU protocol. Easy to apply with SCADA systems and the Energy Management System (EMS)

    • Capable of measuring total harmonic distortion (THD) and individual harmonics up to the 31st order

    • Data log and Max. / Min. records

    • Supports multi-tariff and demand calculation

    • Digital input/output for integration with peripheral devices



    DPM-DA510/DA530

    DPM-DA510/DA530 are easy to be installed due to DIN-Rail mount feature and also have LCD display. Ideal solution for system integration in energy management purpose.

    ● Accurate measurement of electricity parameters
    ● Supports Modbus RTU protocol. Easy to be applied with SCADA and EMS
    ● Pulse Output indicates the energy accumulation
    ● 2 models for different application levels. DA510 for basic requirement like remote electricity data acquisition; DA530 is better for energy management because of capability of THD, TOU, demand, data record and so on…



    DPM-D510

    Delta’s DIN Rail Mount Type Power Meter DPM-D510 provides outstanding measurement accuracy as well as communication capability, and is suitable for monitoring electrical parameters of devices in different environments.


    • DIN-rail mount and LED display
    • Electrical parameters measurement: voltage, current, power, energy, frequency, and power factor
    • Active energy accuracy level: IEC62053-22 Class 0.5S
    • Supports the Modbus RTU protocol. Easy to apply with SCADA systems and the Energy Management System (EMS)
