Delta

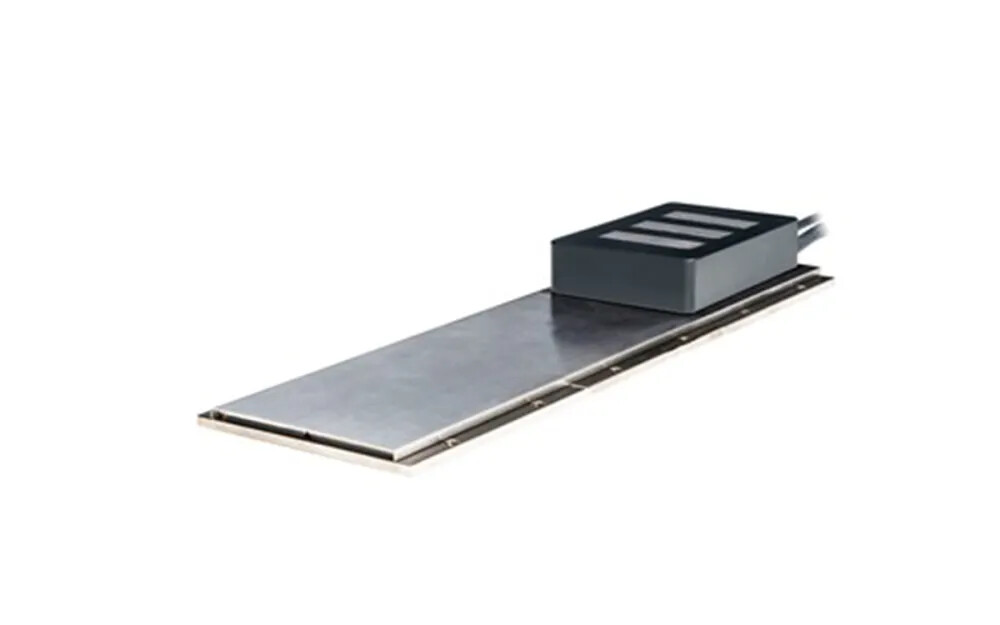

ECM-PF Flat lron core Linear M0tor

  • Built-in hall and temperature sensors for all models in the series, no need for extra installation
  • Special design to reduce temperature rise; Avoids the changes of temperature that affect equipment precision
  • Executive magnetic design to optimize unit thrust (with Delta Servo Drive)
  • Builds a complete motion control solution* with controllers, drives, and linear encoders

Inquiry

ECM-PF Flat lron core Linear M0tor

Delta's flat iron core linear motor is designed with an ironcore structure that features high thrust density, high dynamic response, and is easy to install without abrasion, backlash, or travel limits. The rated thrust is from 125 to 1,000N, which is suitable for applications with long-travel, high-speed and high-load movements demands, such as electronics, semiconductors, machine tools, panels, laser processing, logistics and painting.

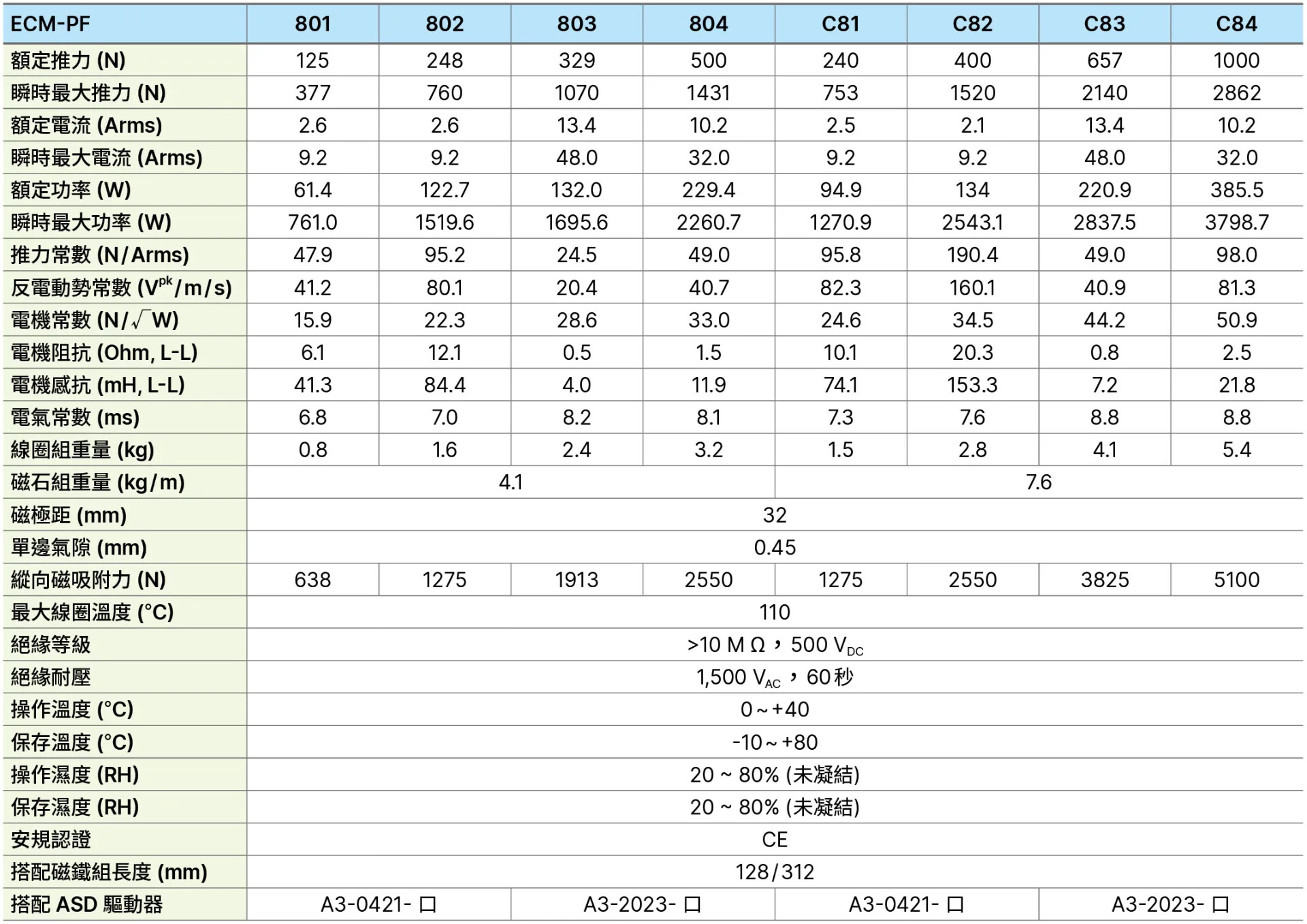

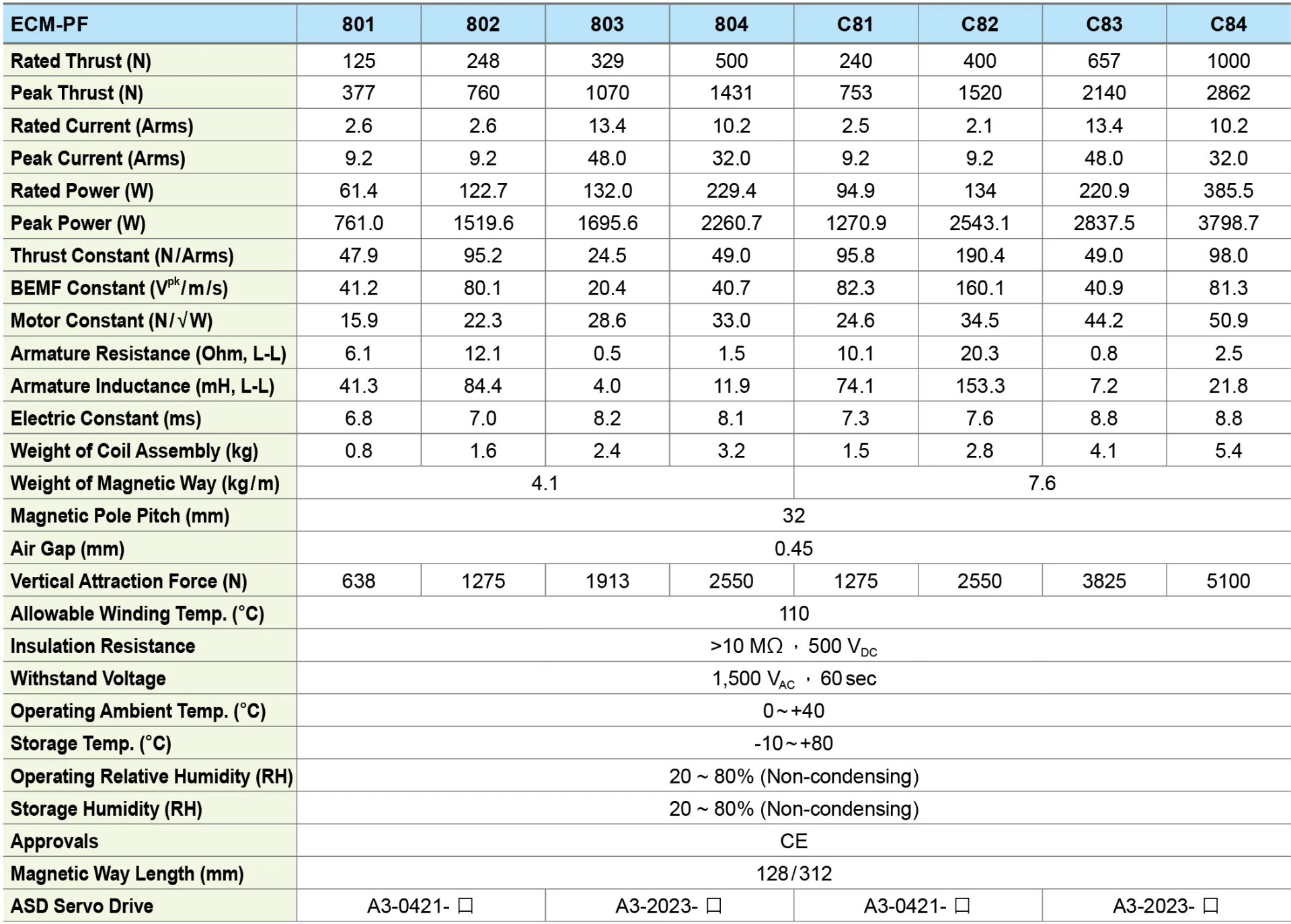

Specifications

Delta_ECM-PF
Delta_ECM-PF

應用領域

點對點高速位移、大型移載運動, 如電子、半導體、機床、面板、雷射加工、 物流、噴繪等長行程應用

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

台達線性運動產品

Delta_IABG_Catalogue_TC_2023

DELTA_IABG_Catalogue_EN
