CKD

SRM3 Series High precision guided rodless cylinder

  • Space-saving
  • High reliability
  • High quality
  • A variety of hardware options

Inquiry

Features

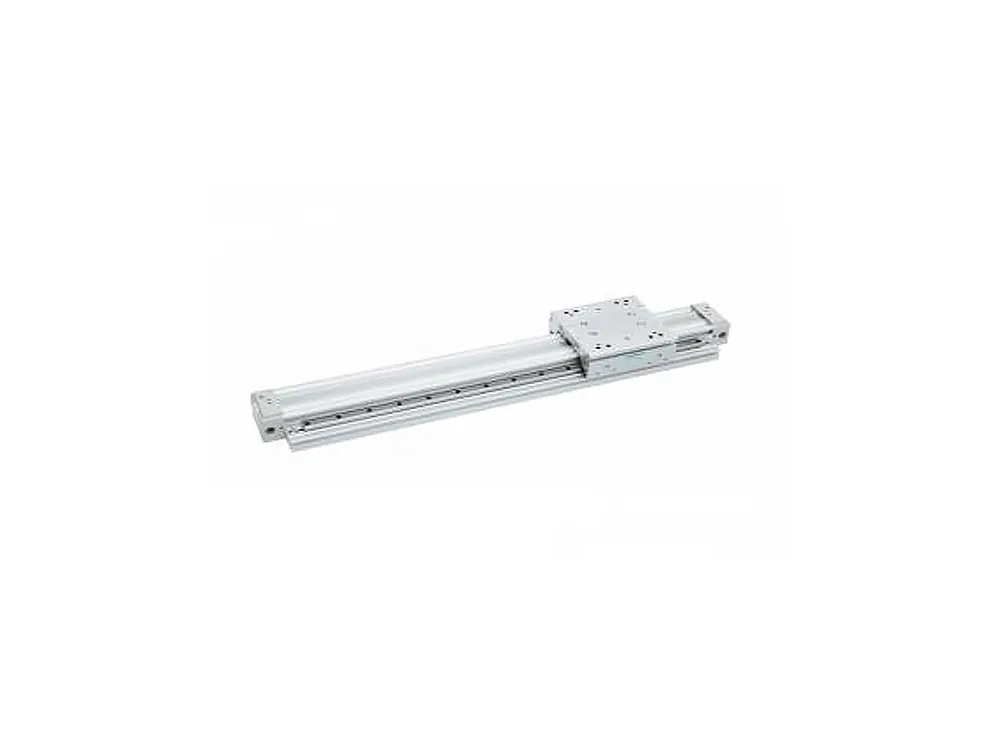

High precision rodless cylinder (Φ25 to Φ63) with integrated high precision 2-axis linear guide. Ideal for high-precision transfer of parts.







Thin design resistant to bending moment
Since a guide is installed in the flat rodless cylinder, the table surface is low, and the structure is resistant to bending moment.



Safety (SRM 3-Q Series)
A position locking unit that can mechanically lock at a desired point in the stroke length can be installed, increasing machinery safety.



Fixing full stroke length adjusting unit
The full stroke length adjusting unit with shock absorber is securely fixed with a special flat nut to prevent displacement at the stroke end. No spacer is necessary for a gap between the unit and cover.

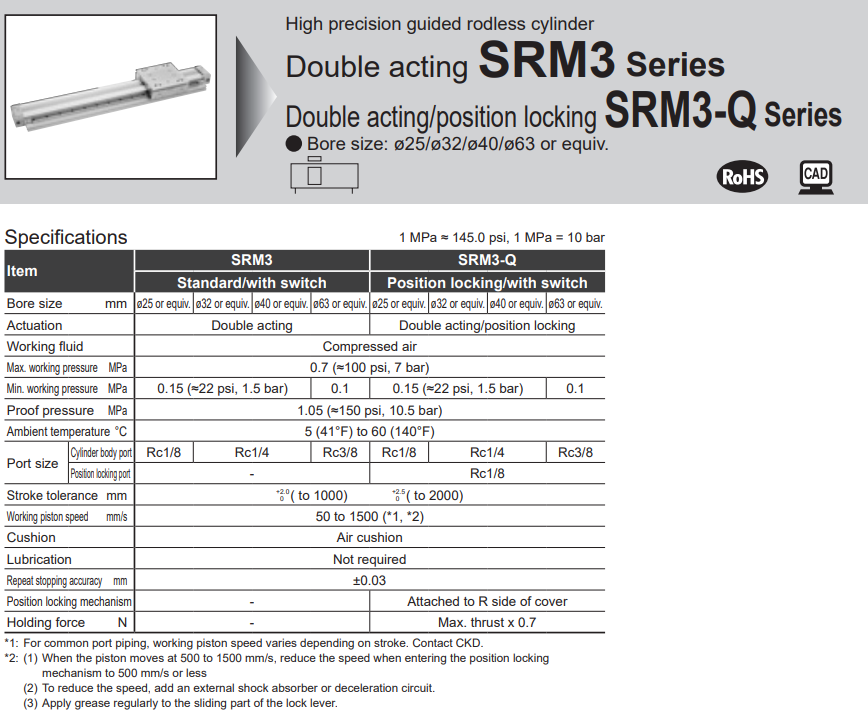

Specification

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

SRM3 Series Specifications・How to order・Dimensions(0.7MB)

SRM3系列 規格・型號表示方法・外形尺寸圖(2MB)
