Delta

CP2000 Series

  • With a built-in 10K steps Delta PLC allows user to execute distributional control and independent control when connecting to a network system. Delta CP2000 series drives provide you the intelligent control possibility beyond your imagination.
  • The calendar function allows user to program the PLC procedure, the ON/OFF in chronological order, the daylight saving time and etc.
  • A wide range of models to fulfill the demands of different industries.
  • The modularized design eases the maintenance and expansion.
  • High-speed communication interfaces with Modbus protocol and BACnet protocol built in. Diverse communication options are available for you: the BACnet IP, PROFINET, ProfiBUS-DP, the DeviceNet, the Modbus TCP, the Ethernet-IP and the CANopen Cards.

CP2000 Series

Delta's Sensorless Vector Control Drive CP2000 Series has extended the idea of energy saving and uses this principal as the basis of its design. The CP2000 is specifically designed for applications such as air blowers, pumps and HVAC drives with its intelligent PID control providing the greatest efficiency. The Sensorless Vector Control (SVC) offers timely response to load torque increase/decrease which satisfies customer requirements for load changes while enhancing motor performance. A 3-step V/F curve response is used in the variable torque environment to adequately adjust the input voltage and attain the greatest overall performance; this function is especially helpful in pumps and fans applications. It also includes additional functions for operation and protection in variable load environments, such as flying starts, auto-acceleration/deceleration, momentary power loss restarts, auto-tuning, and more. The CP2000 series provides you with the ultimate energy-saving solution for your applications.

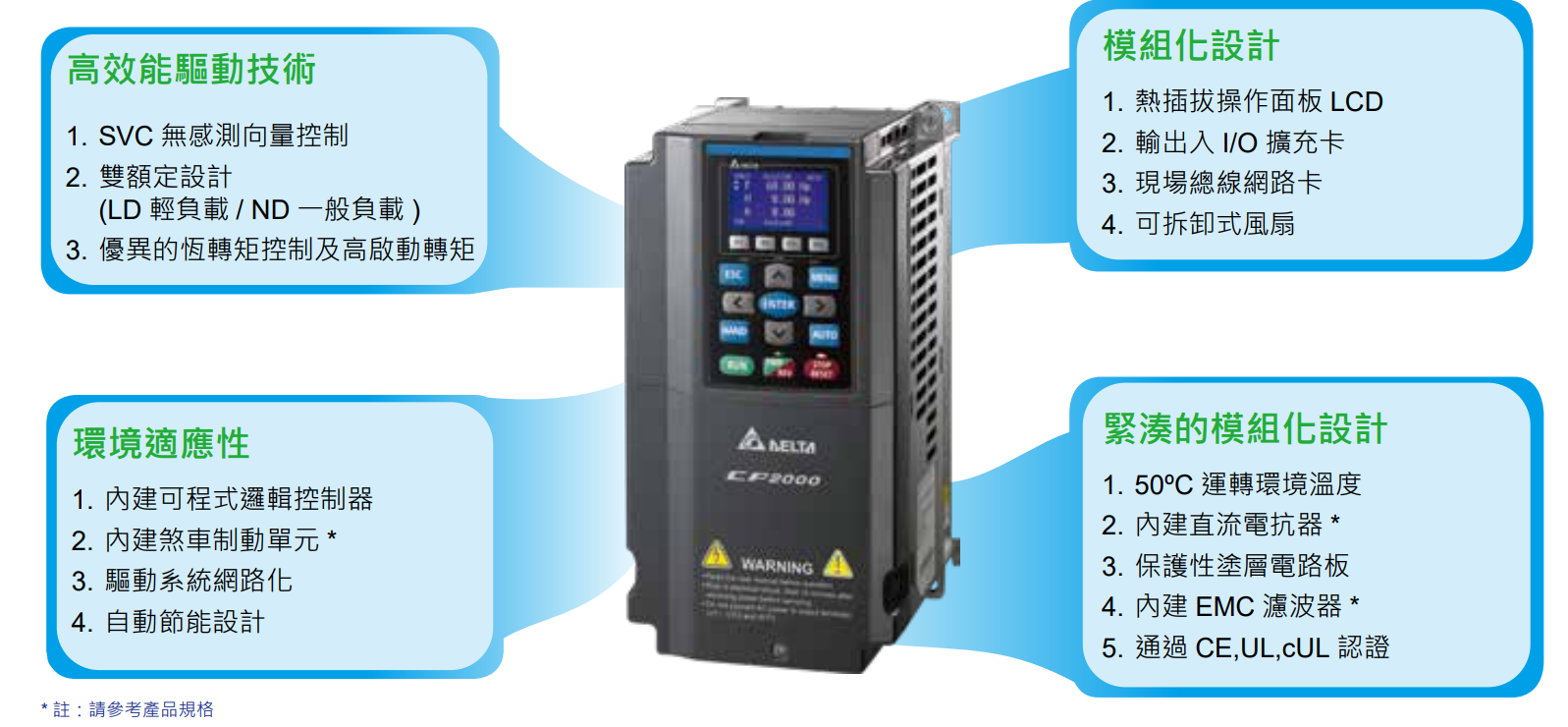

Advanced Drive Technology

Features

  • LCD keypad - An easy-to-use text panel with TP Editor software allows users to customize the main page screen
  • Quick setting functions to support self-defined parameter groups and parameter duplication for fast and easy installation
  • Modular design for flexible extension and easy maintenance
  • High-speed communications include BACnet and Modbus. Optional communication cards are available upon purchase: PROFIBUS DP, PROFINET, DeviceNet, Modbus TCP, EtherNet/IP, CANopen and BACnet IP
  •  Extended life cycle
  • Enhanced conformal coating on PCBs for superior durability in critical environments
  • Fire mode and bypass functions: continuous pressure to extract smoke when emergencies occur
  •  Various modes for fans/pump applications including PID control, sleep/wake up functions, flying start and skip frequency
  • Multi-pumps synchronous control of up to 8 motors at one time and provides fixed amount and fixed time circulation control

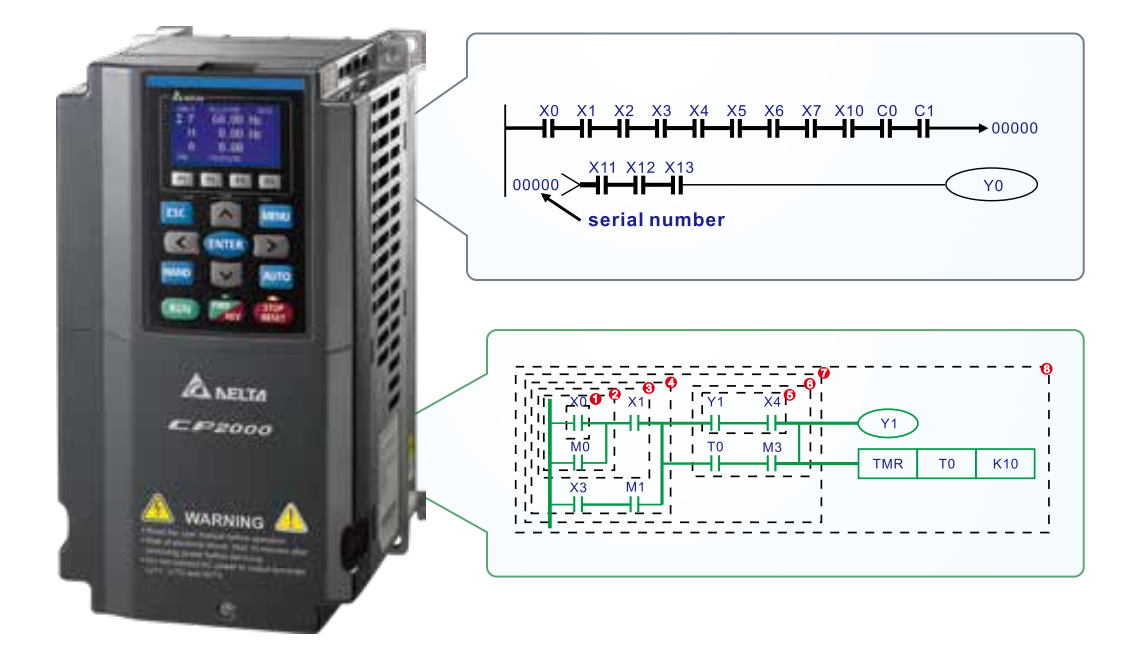

  • Built-in 10K steps PLC programming capacity and Real Time Clock (RTC)


Standard Models

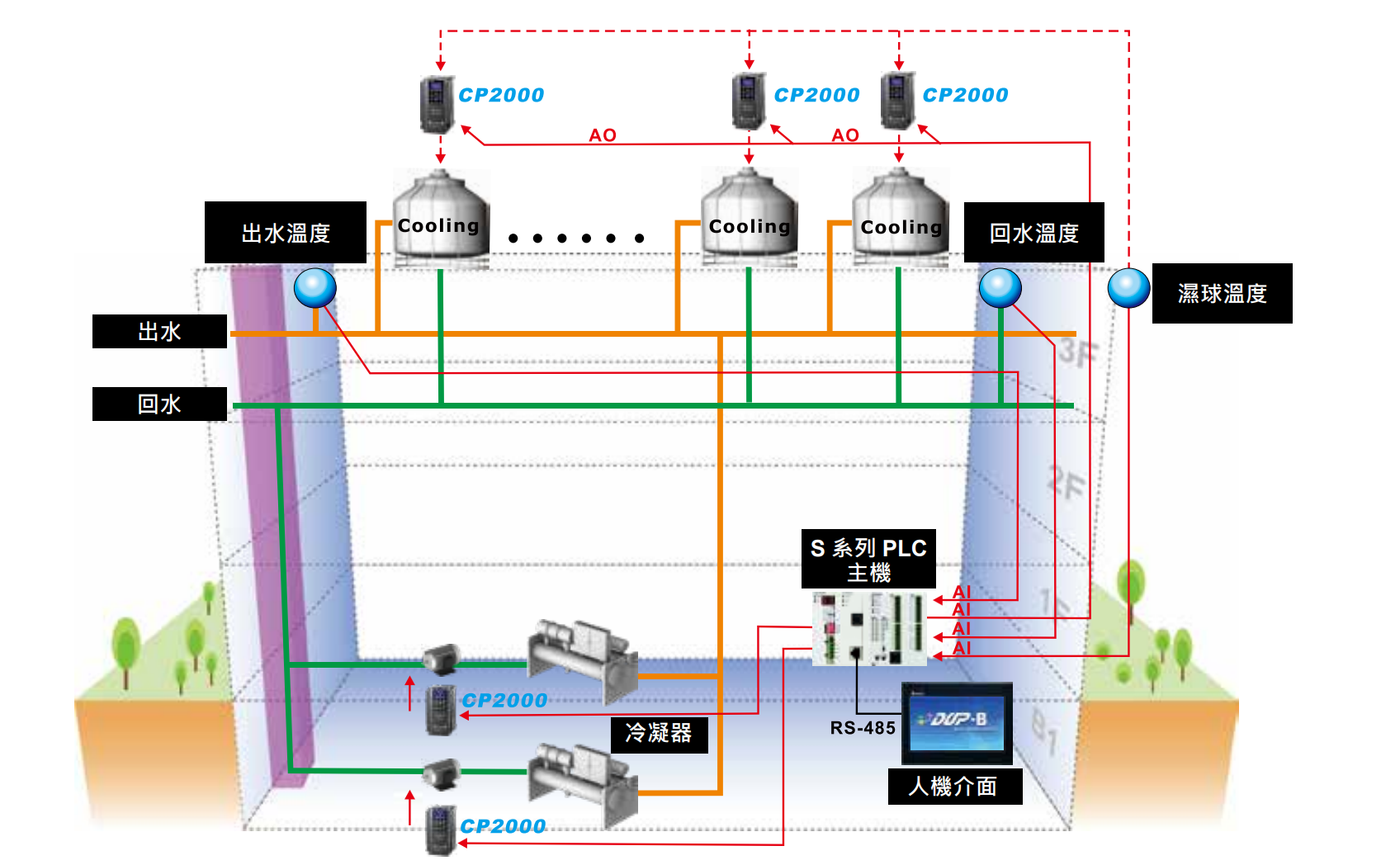

Building Automation Applications

  • 4-point adjustable V/F control - Real-time adjustment of output voltage under variable torque load

    environments, especially for pump and fan applications.

  • Skip frequency function avoids mechanical resonance and protects the equipment.

  • Built-in BACnet communication protocol saves wiring for building automation applications.

  • Low-current protection function prevents free load operation.

  • Flying start and auto restart after momentary power loss functions, suitable for fan application.
