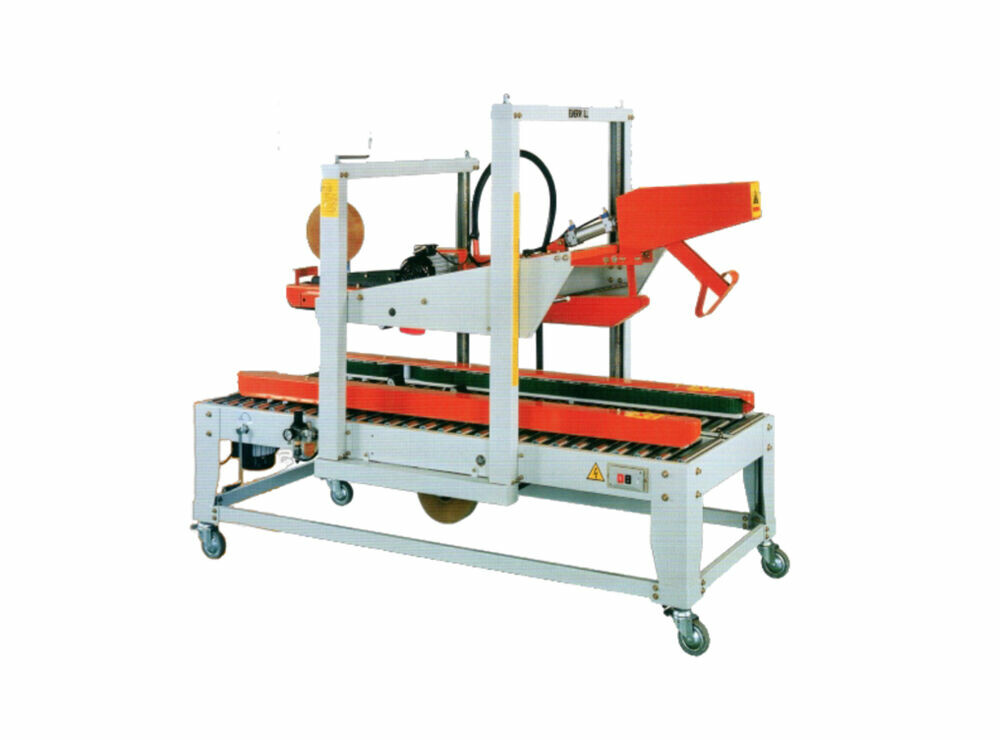

This model is designed for automated carton sealing with uniform flap folding, ensuring efficiency and reliability in packaging operations. With a top and bottom belt drive system, it provides secure and precise sealing, making it ideal for batch production with consistent carton sizes. The manual adjustment feature allows flexibility for different carton dimensions while maintaining smooth performance.
Features
Auto top flap folding
- Manual adjustment for carton size
Top and bottom belt driven
Three-motor system
Techinical Data
Model | SB-605 |
|---|---|
Carton size | L: 150-650 mm |
Capacity | 21 ctns/min Belt speed: 18 m/min |
Tape width | 2" / 3" |
Table Height | 570-750 mm |
Electrical Requirement *customize available | 110V, 220V, 230V, 240V 50/60Hz 1φ |
Air Compressing | 5kg/cm², 450L/min |
Machine Dimension | (L × W × H) |
