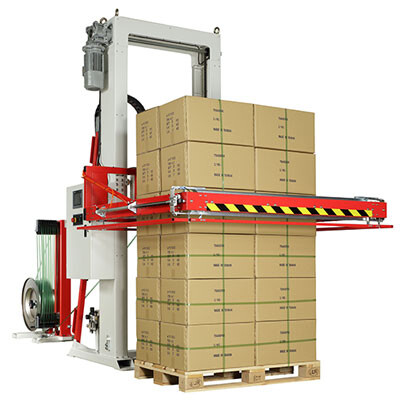

The enhanced TP-733H provides accurate strapping output on all natural-sized loads with consistent performance. It maximizes the productivity and minimizes the production cost for users. Designed for simple and quick connection to the master control system, TP-733H can easily fit in various end-of-line packaging sectors. It is your best choice for fully automatic operation in various applications, including palletized products, home appliance, bricks & blocks, etc.
Capacity | Up to 60 pallets/hour (3 parallel straps) |
Strap Type | PP or PET strapping |
Strap Width | 12 mm, 15.5 mm, or 19 mm |
Tension Range | 1100 - 3200 N (standard) |
Minimum Strapping Height | (a) With conveyor: 160 mm above conveyor surface |
Maximum Package Height | Standard: 2,200 mm |
Strap Core Size | 406 mm/200 mm/230 mm/280 mm |
Pneumatic Source & Air Consumption | 6 bar |
Electrical Requirements | 220V, 380V, 400V, 415V 50/60Hz 3PH |
