Delta

DIASECS Semiconductor Equipment Standard Communicationand ControI AppIication Software

  • Fully compliant with the SEMI standards
  • Above 300 transactions per second
  • Features API interface and assisting tools of system configuration, information simulation, and more.
  • Highly integrated with the SECS/GEM standards and supports most of the PLC communication protocols.
  • Provides complete SECS event history to track anomaly causes

Inquiry

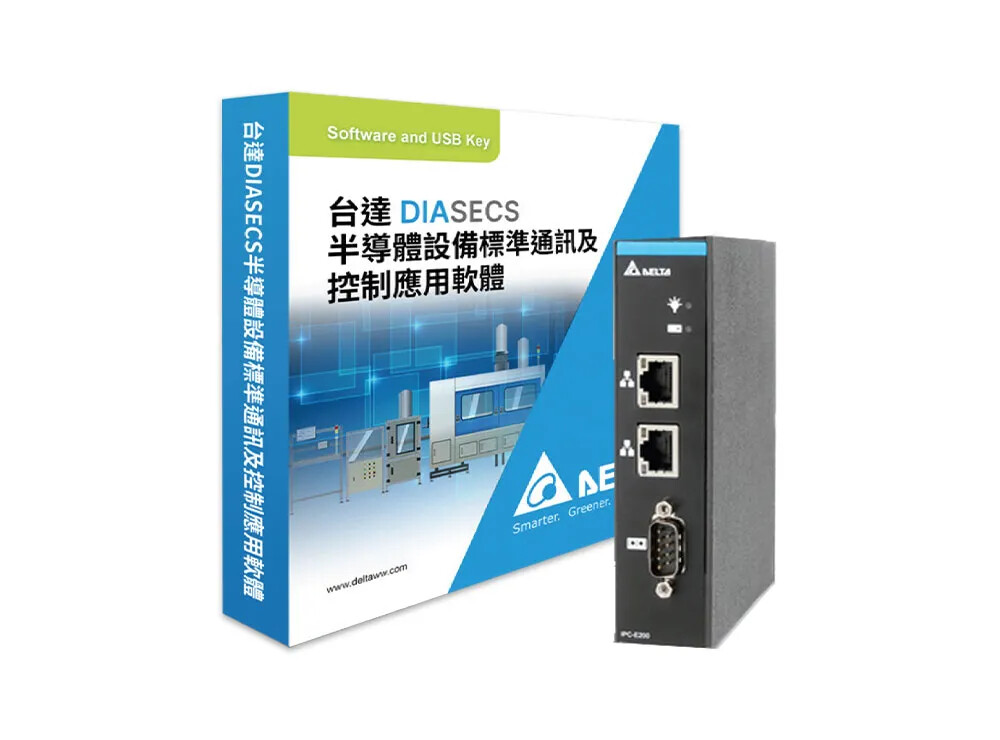

DIASECS Semiconductor Equipment Standard Communicationand ControI AppIication Software

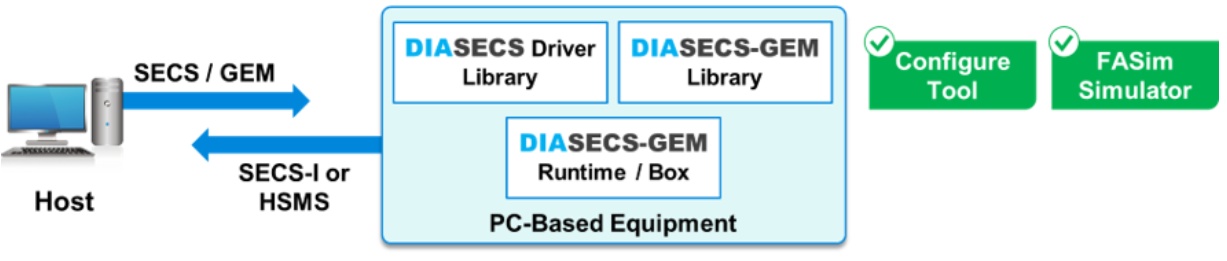

DIASECS is a generic solution for semiconductor equipment communication and control. In addition to providing SECS/GEM protocol standards, users can quickly import SECS/GEM standards into equipment through its configuration tool settings and highly automated seamless integration. By solving problems such as complicated processes and hard-to-integrate data due to a great variety of equipment, the DIASECS helps realize production management intelligence and automation. The SECS/GEM is not only suitable for the semiconductor industry but for a wide range of applications, including printed circuit boards, photovoltaic panels, solar energy, electronic components industries, and more.

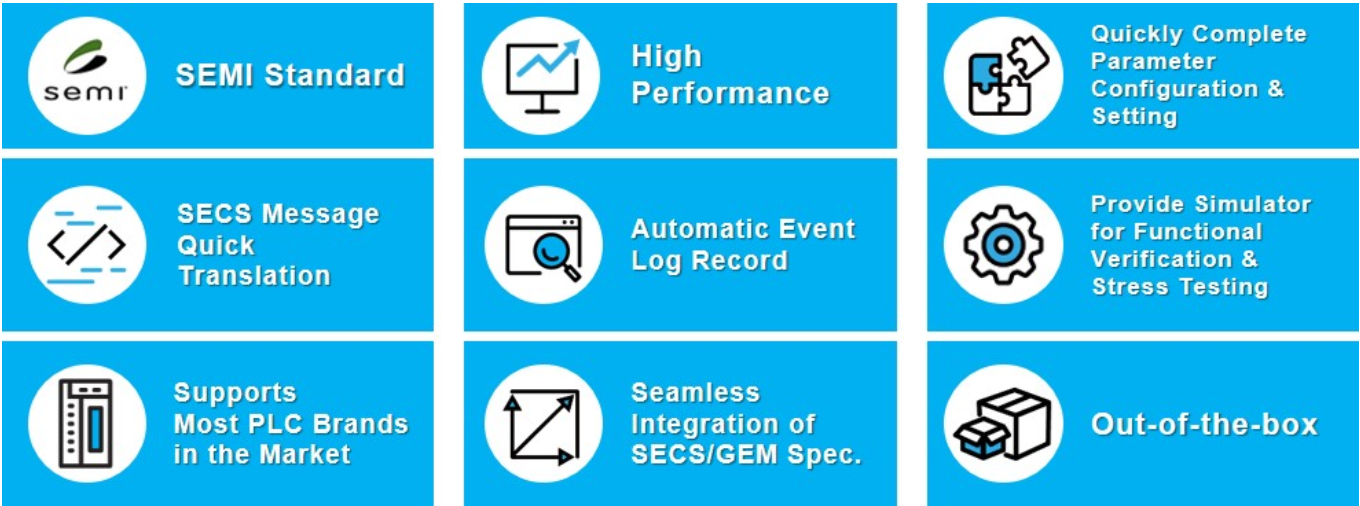

Features & Benefits

SEMI-compliant, highly efficient, and easy to use

  • Fully compliant with the SEMI standards
  • Above 300 transactions per second
  • Features API interface and assisting tools of system configuration, information simulation, and more. Reduces the burden on development for fast adoption





Highly integrated with a friendly user interface and anomaly tracking

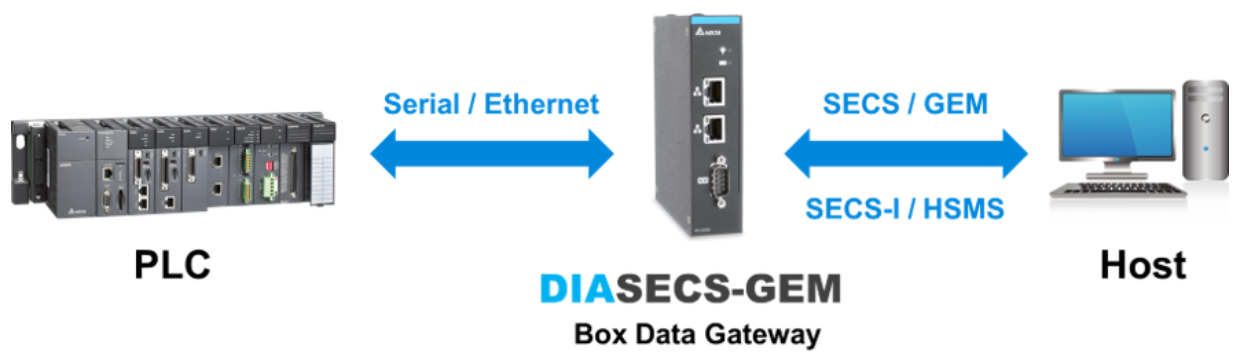

  • Highly integrated with the SECS/GEM standards and supports most of the PLC communication protocols. Features a system configuration tool for out-of-the-box setup
  • The friendly and comprehensive user interface of the configuration tool facilitates fast system setting and shortens the deployment time
  • Provides complete SECS event history to track anomaly causes



Specifications

Item

SPEC

CPU

Intel® Celeron

Memory2 GB DDR3L 1,600 MHz, Maximum support 8 GB
HDD

64 GB mSata SSD

Network

Intel® i211AT Gigabit Ethernet Controller x 2

Expansion

Full-size Mini PCIe

System I/O

RS-232/RS-422/RS-485 x 1, Default is RS-232, which can be set in BIOS
USB 2.0 x 2

VideoVGA output x 1
Size (mm)

100 mm (L) x 31 mm (W) x 125 mm (H)

WeightNet Weight: 0.3 kg; Gross Weight: 0.46 kg
Temperature

Operating: -20℃ ~ 70℃ (-4℉ ~ 158℉)
Storage: -45℃ ~ 85℃ (-49℉ ~ 185℉)

Operating Humidity10% ~ 90%, non-condensed state
MTBF

MTBF ≧ 69,000h
MTTR ≦ 0.5h

Certified

CE、FCC

Vibration

2.0 G,5 ~500 Hz

Power

12 ~ 24 VDC,17 W

Operation System

Windows 10

RECOMMENDED

AVEVA™ Edge

AVEVA™ Edge

DlATwin Virtual Machine Development Platform

DlATwin Virtual Machine Development Platform

DIASPC Statistical Process Control System

DIASPC Statistical Process Control System

DIAEAP+ Equipment Automation Program

DIAEAP+ Equipment Automation Program

Download

Catalogue
Datasheet
Manual
Brochure
Report
