CKD

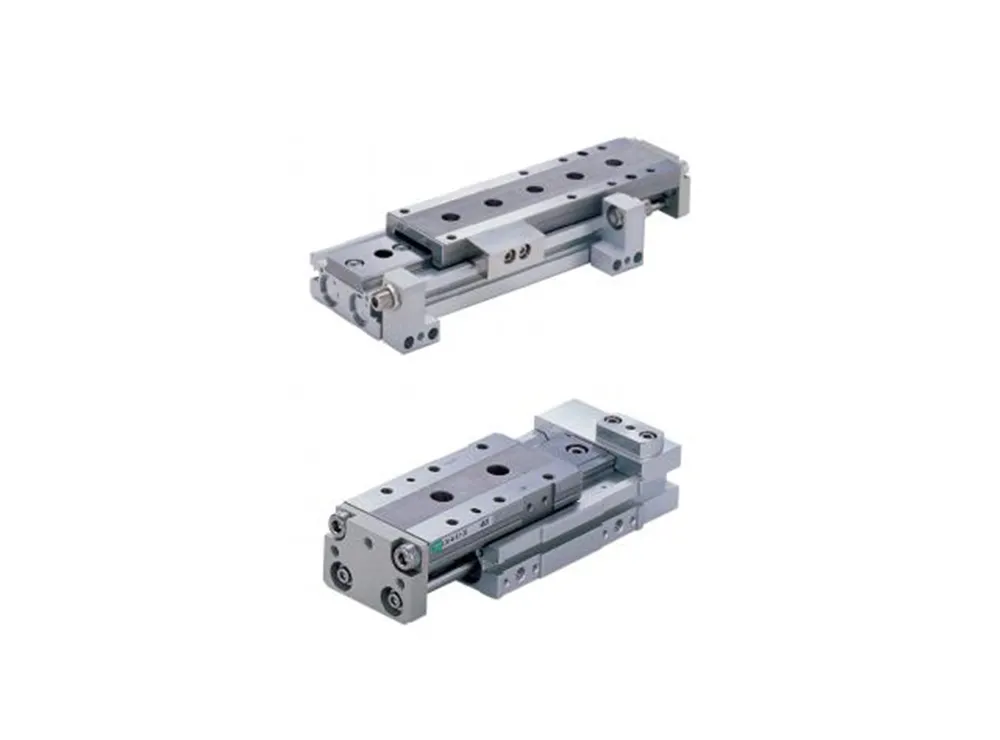

LCG Series Linear slide cylinder

  • Space-saving
  • High reliability
  • High quality
  • A variety of hardware options

Inquiry

Features

A high-precision, high-rigidity wide guide has been attached. Symmetrical structure with increased flexibility in design. Cylinder with linear guide with a wide variety of options and variations.



Guide balls aligned in four rows on the linear guide (Φ12 or more)

  • Guide balls aligned in four rows ensure stable operation in all load directions.
  • The contact area of the guide balls is smaller than that in the two-row configuration with minimum friction resistance and enables smooth precision operation with a rigid body.



High rigidity

  • Stainless steel or steel adopted for slide table material.
  • Increased rigidity when combined with a wide guide.



Increased flexibility in design

  • Designing is more flexible with the laterally symmetrical stoppers, multi-side piping, two-side installation and positioning hole availability.



A wide variety of options and variations

  • Standard, position locking and clean-room specifications are available.
  • Options include a stroke adjusting stopper, shock absorber stopper and more.

* Shock absorber stopper cannot be used with the clean-room specifications.



With buffer mechanism

  • If the driving section strikes against the workpiece when the cylinder is going forward, the buffer function is activated to protect the workpiece and cylinder when this type is used.
  • Effective at the end of pick & place devices and other applications requiring a buffer function.
  • A cylinder switch mounted to detect the buffer activation (BL) enables detection of line abnormalities.

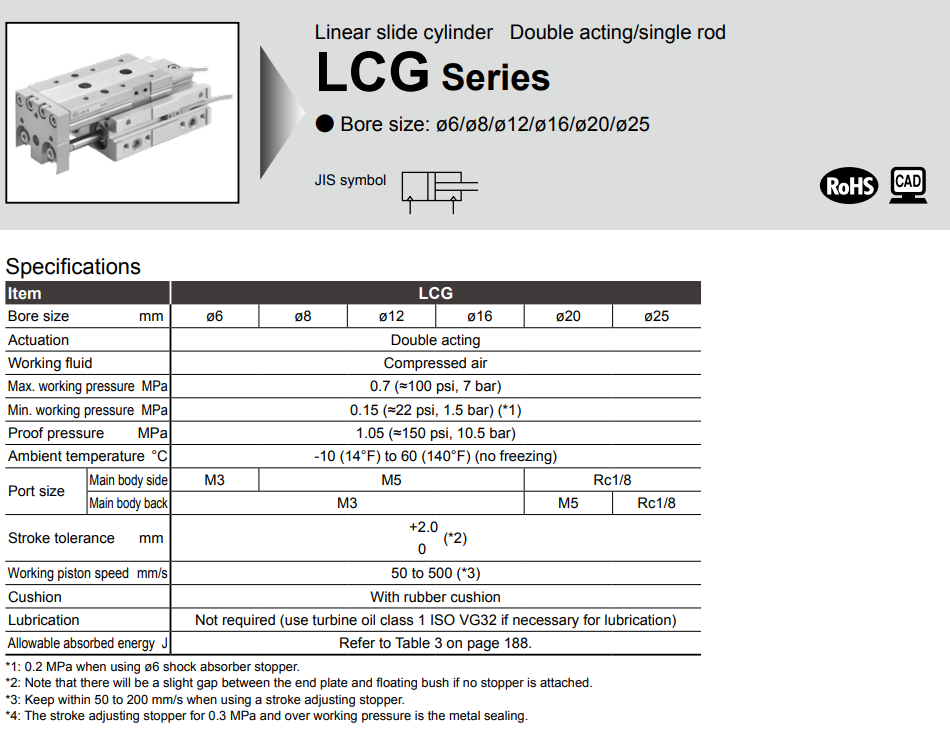

Specification

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

LCG Series Specifications・How to order・Dimensions(4MB)

LCG系列 規格・型號表示方法・外形尺寸圖(5MB)
