STR2 Series Twin rod cylinder

  • Space-saving
  • High reliability
  • High quality
  • A variety of hardware options

Inquiry

Features

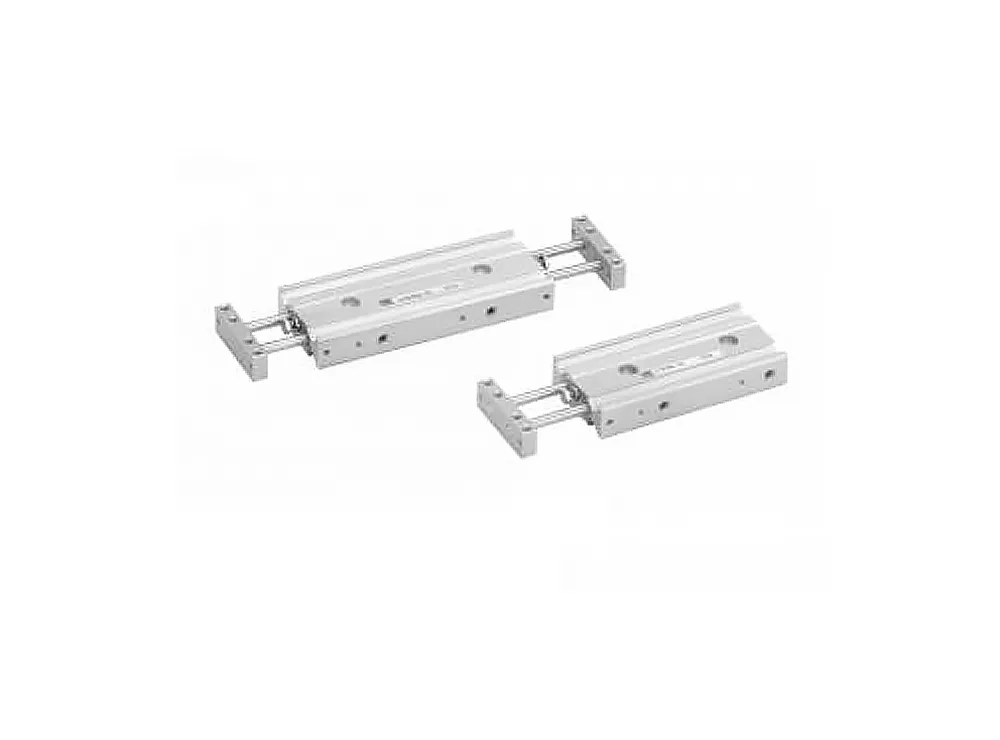

The twin rod mechanism can improve the non-rotating accuracy and also double the thrust.
It has six bore sizes from φ6 to φ32 as well as various options and variations.



Bearing options
Metal bush bearing and ball bearing are available according to the application.



High level of non-rotating accuracy
Two single rod cylinders fixed to the end plate in parallel.
High non-rotating accuracy, not requiring rotation-stop.



Ultra-compact type available
The ultra-compact φ6 bore size has been added to the series, ideal for transportation of small articles.



Piping ports can be installed on either side
Since piping ports can be installed on the right or left side, piping processing according to the equipment is easy.



Easy to install
By using reamed holes for parallel pin, it is easy to reproduce and adjust during product replacement for maintenance.

Specification

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

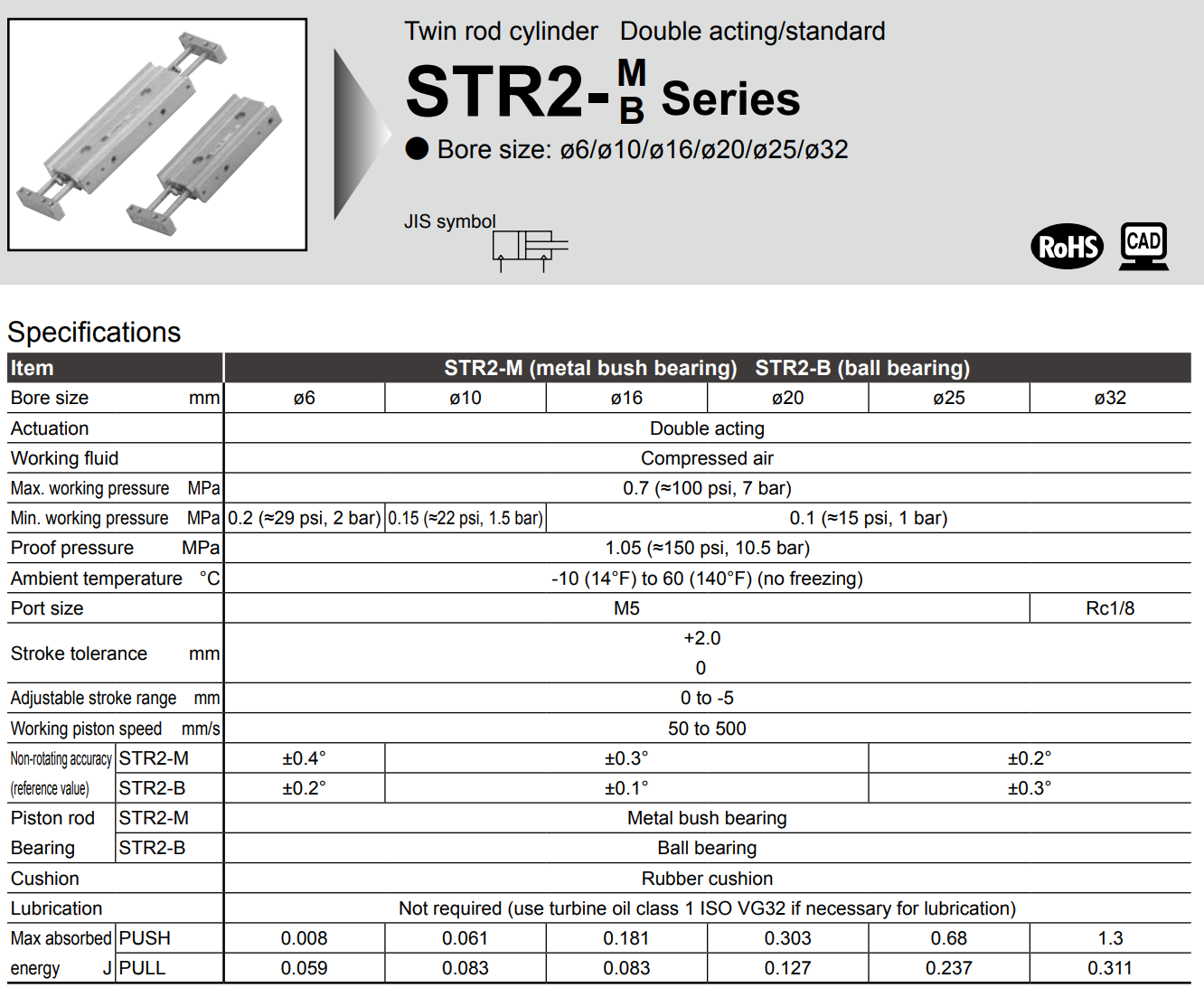

STR2 Series Specifications・How to order・Dimensions

STR2系列 規格・型號表示方法・外形尺寸圖(2MB)

DELTA_IABG_Catalogue_EN
