VFD-ED series

Delta's VFD-ED series AC motor drive designed for elevators are based on years' of experiences in designing AC motor drives, and the experience accumulated since the first Delta elevator AC motor drive VL series launched in 2007. The VFD-ED Series Not only keep safety as first priority but also enhances operation efficiency and riding comfort.

Applications

Home elevator, cargo elevator, passenger elevator in both residential and commercial buildings

Specifications

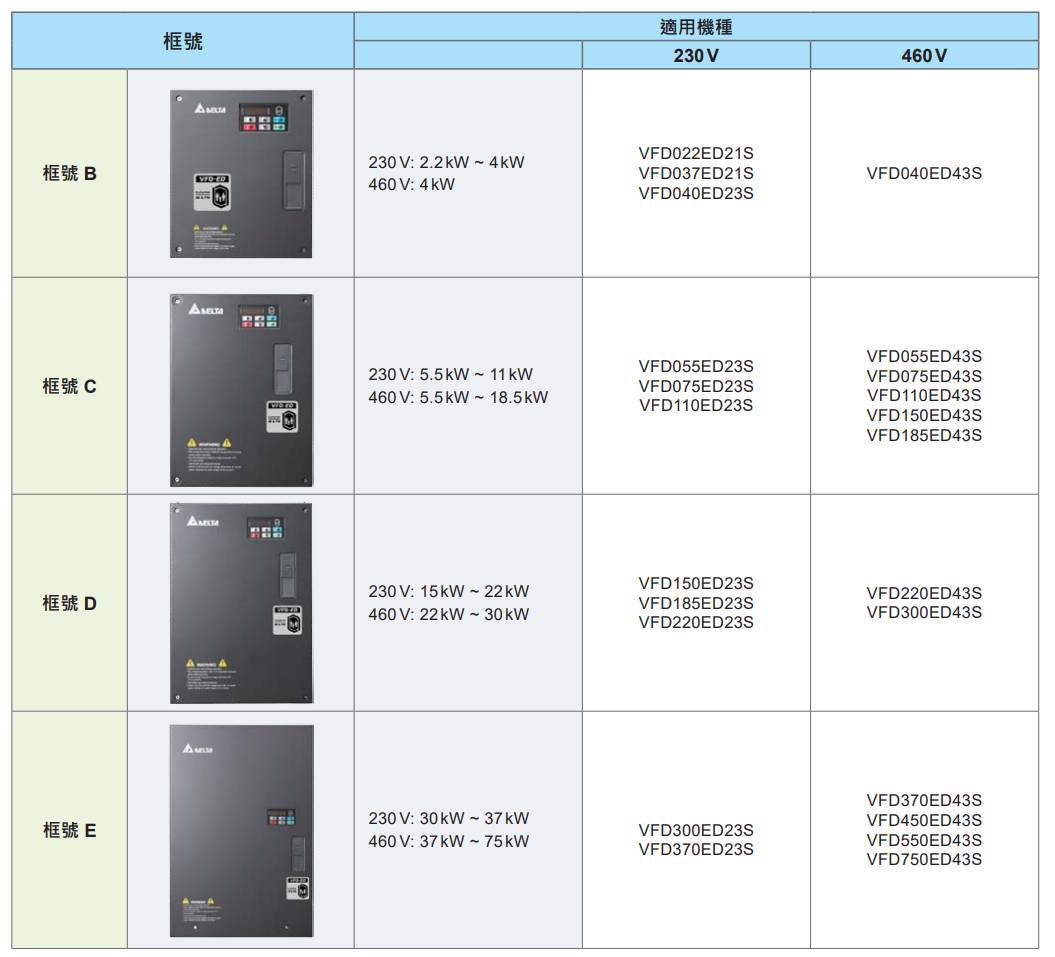

Power rating from 2.2 kW to 75 kW
Supports both asynchronous and synchronous motors
Output frequency up to 0 ~ 299 Hz
8 programmable digital inputs/ 6 programmable output
Supports various encoders (ABZ, ABZ+UVW, SIN/COS, SIN/COS+Endat2.1)
Supports single output contactor operation (SIL2)
Built-in with CAN/Modbus communication interface
Built-in 7 segment digit keypad, optional LCD keypad available
Auto-tuning with the load attached
Overload capacity up to 200%
Supports 1-phase 230VAC Uninterrupted Power System(UPS)

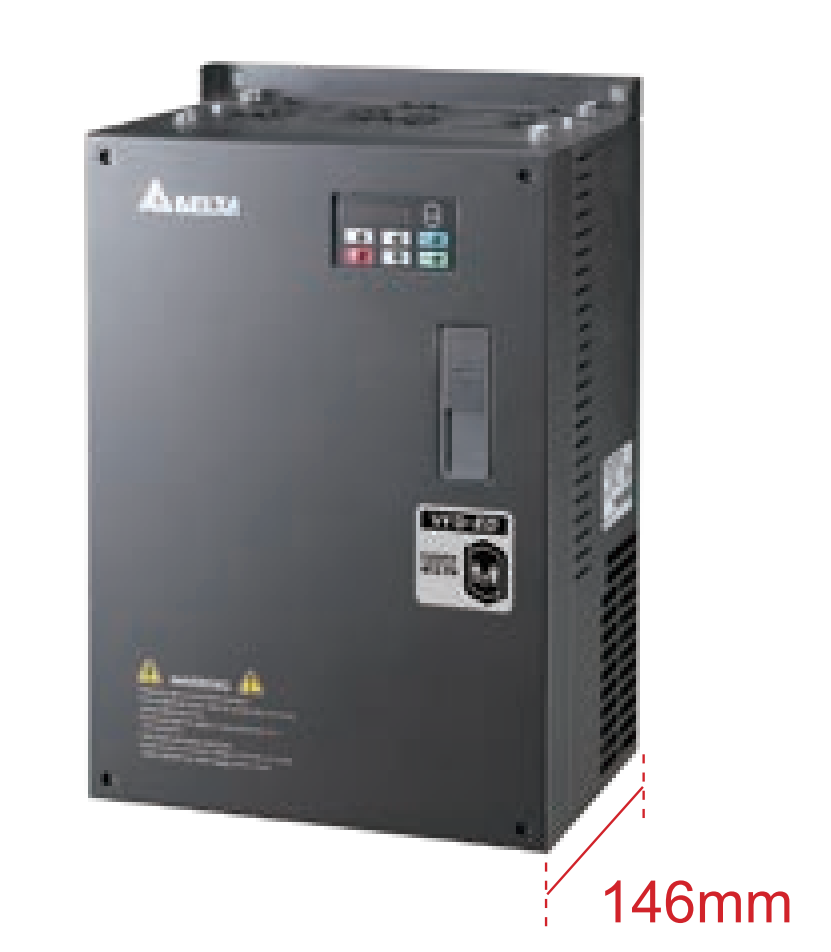

Compact dimensions

Comfortable Ride

Safety Ensured

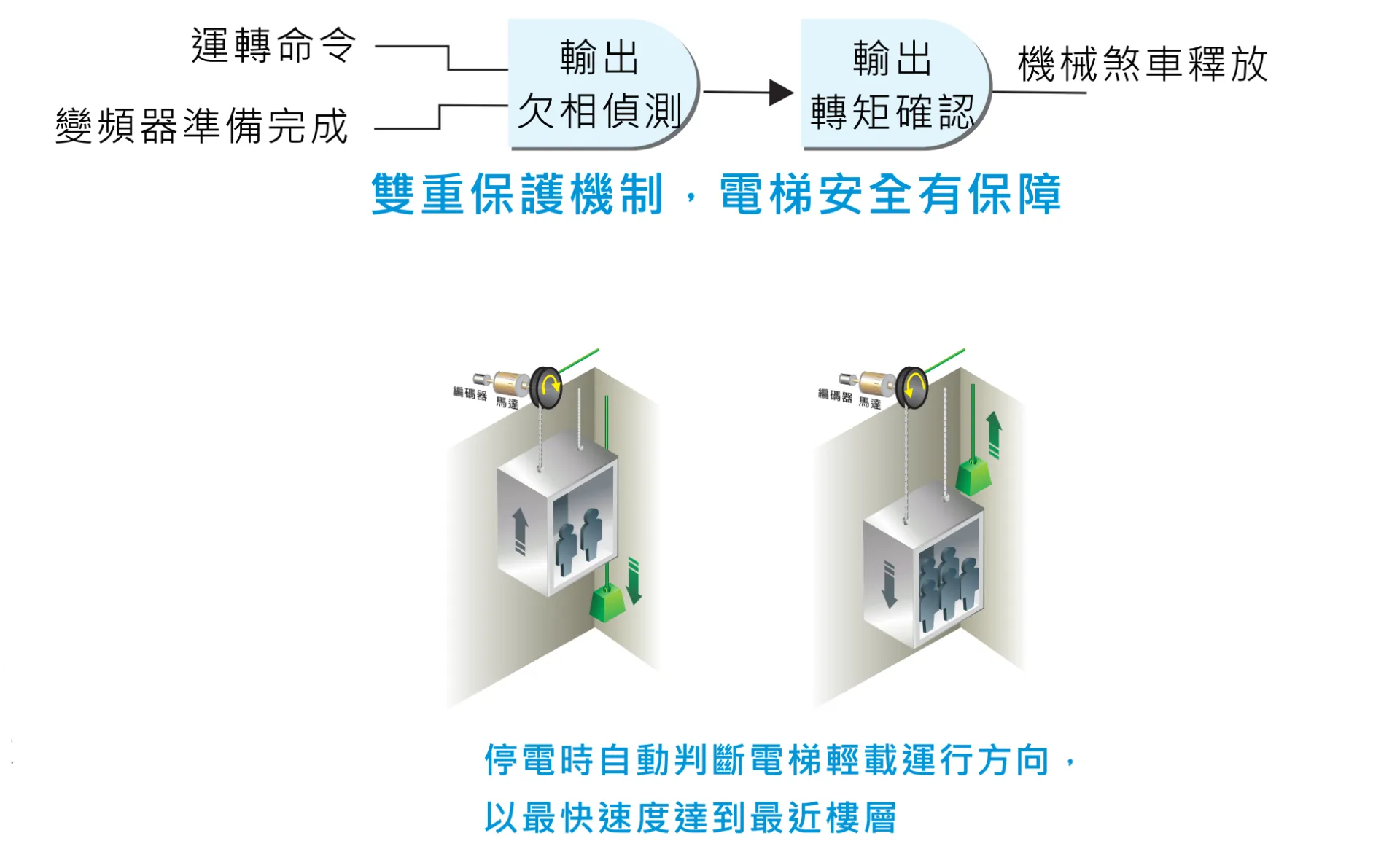

Dual output protection for a reliable ride

Auto-detect output phase loss to ensure proper motor operation

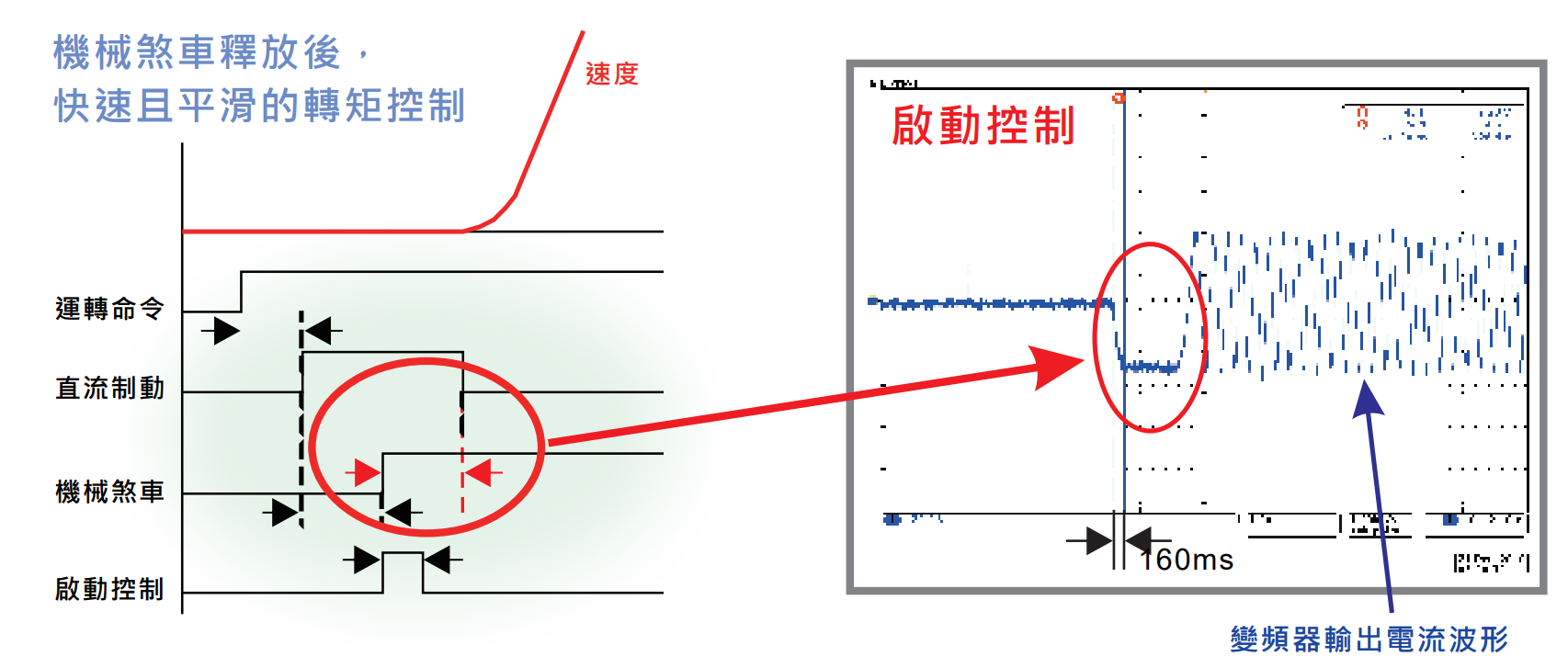

Auto-check torque output before the mechanical brake is released

Emergency operation

Supports single-phase 230/460VAC Uninterrupted Power System (UPS). Light-load direction search function is triggered automatically when power failure occurs

Built-in STO (Safe Torque Off) function

Compliant with EN61800-5-2 (STO) and EN61508 (SIL2) standards for high safety protection and reliability Less output contactors are required compared to to traditional installation methods. Saves on installation cost
