Delta

DTM series Multi-channel Modular Temperature Controller

  • Modular design for easy wiring
  • Various extension modules for a wide range of applications
  • Data collection by hosts for highly efficient data exchange
  • Supports RS-485 and Ethernet communication for multi-point temperature control: up to 64 points per host group, >1,000 points with several host groups
  • User-defined communication addresses
  • Complete isolation between channels

Inquiry

DTM series Multi-channel Modular Temperature Controller Overview

To meet the increasing complexity of temperature control applications, Delta introduces the Multi-channel Modular Temperature Controller DTM Series. The DTM Series consists of a host, measurement modules, I/O extension modules, and extension cassettes. A fully extended DTM group consists of a host plus 7 measurement modules and 8 I/O extension modules for up to 64 points of temperature control. Several DTM groups can even be connected via RS-485 or Ethernet for temperature control of up to 1,000 points or more.

Data collection by the host and complete isolation between channels help to improve communication speed and stability. It also allows user-defined communication addresses.

From hardware to software, the DTM's intuitive design enables beginners to setup and operate it easily. It is an ideal solution for advanced and complex temperature control applications.

產品介紹

Features & Benefits

  • Modular design for easy wiring

  • Various extension modules for a wide range of applications

  • Data collection by hosts for highly efficient data exchange

  • Supports RS-485 and Ethernet communication for multi-point temperature control: up to 64 points per host group, >1,000 points with several host groups

  • User-defined communication addresses

  • Complete isolation between channels



Applications

  • Food packaging, rubber and plastics, electronics



Dimensions

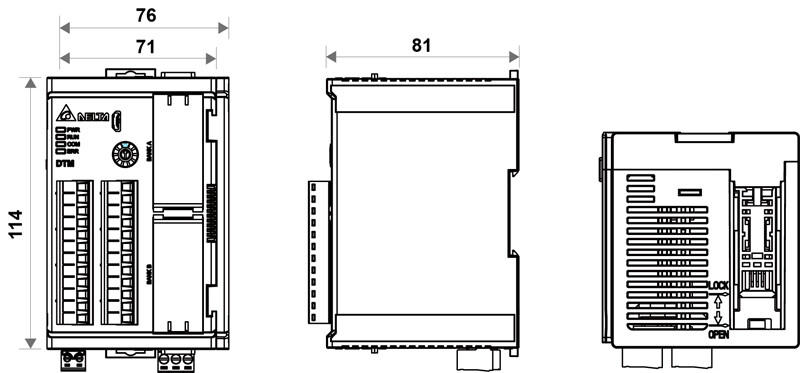

Host (Unit: mm)

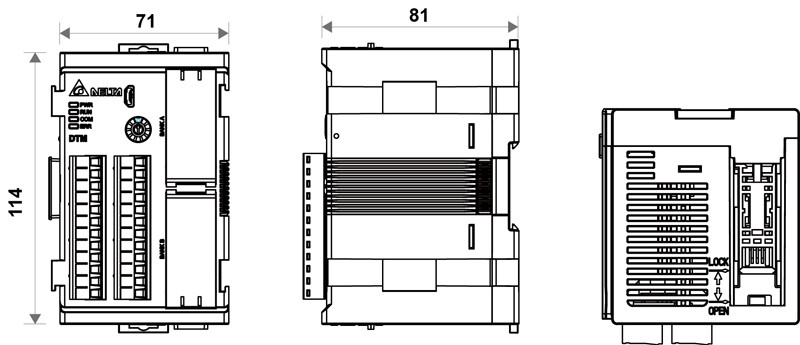

Measurement Module (Unit: mm)

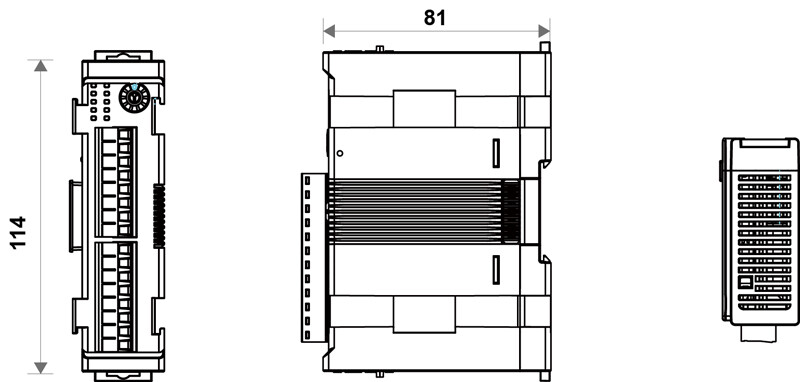

I/O Module / DTMN02-x Measurement Module (Unit: mm)

RECOMMENDED

DTB Series Temperature Controllers DTB Series

DTB Series Temperature Controllers DTB Series

DTK Series Temperature Controller

DTK Series Temperature Controller

DT3 Series Temperature Controller

DT3 Series Temperature Controller

DTV Series Valve Controller

DTV Series Valve Controller

DTC Series Modular Temperature Controller

DTC Series Modular Temperature Controller

DTE series Multi-channel modular temperature controller

DTE series Multi-channel modular temperature controller

DTM series Multi-channel Modular Temperature Controller

DTM series Multi-channel Modular Temperature Controller

DTN series Multi-channel Modular Temperature Controller

DTN series Multi-channel Modular Temperature Controller

DPM-C Series Power Meter

DPM-C Series Power Meter

DPM-D Series Power Meter

DPM-D Series Power Meter

DPM-M Series Power Meter

DPM-M Series Power Meter

DPA Series Standard Multifunction Pressure Sensor

DPA Series Standard Multifunction Pressure Sensor

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

Delta_DT Series_Catalogue_EN

Delta_DT Series_Catalogue_TC

Delta_IABG_Catalogue_TC_2023

DELTA_IABG_Catalogue_EN
